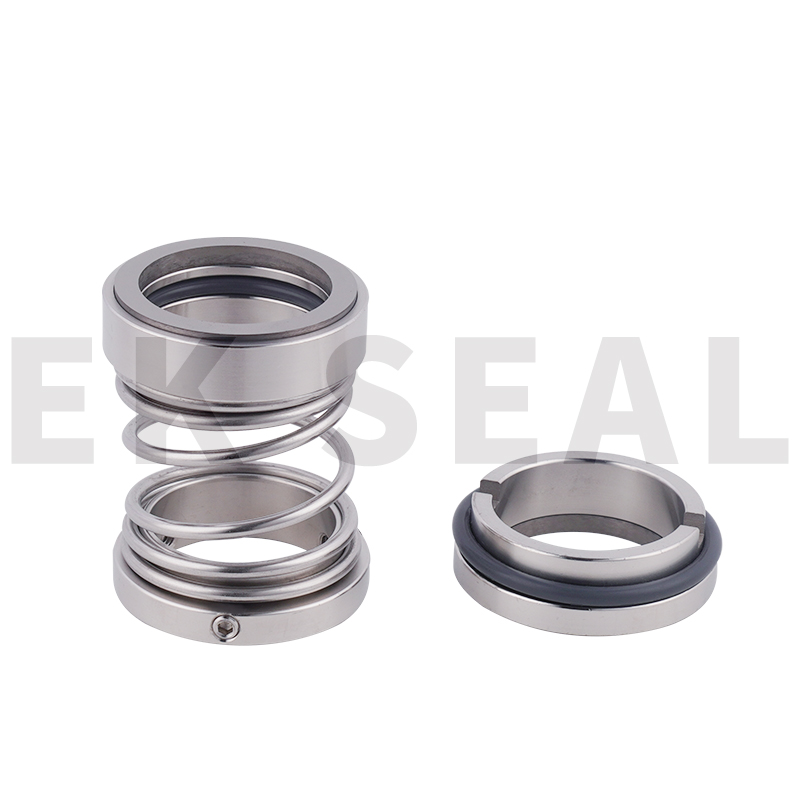

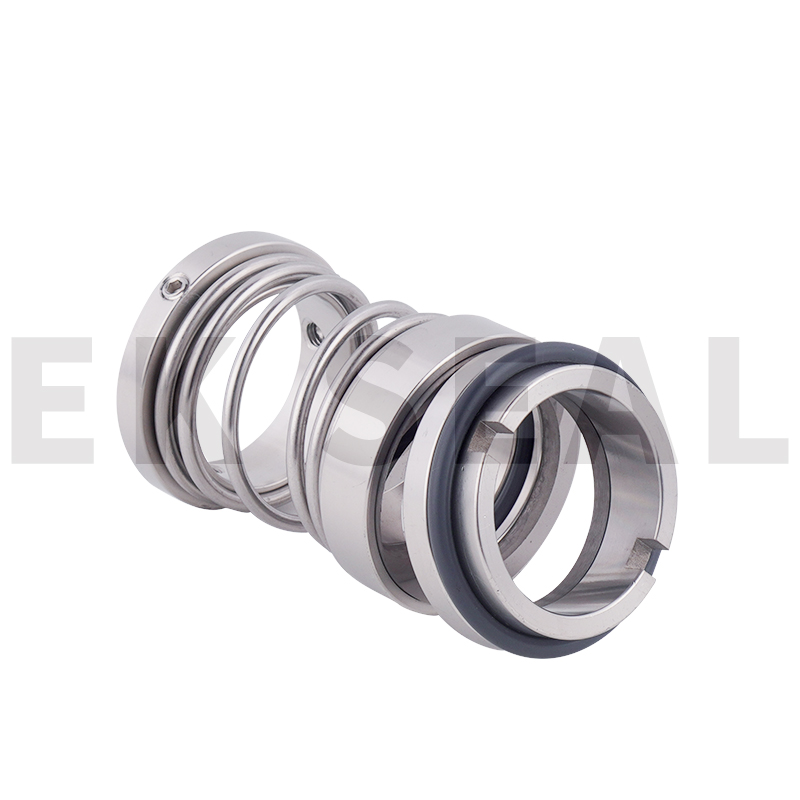

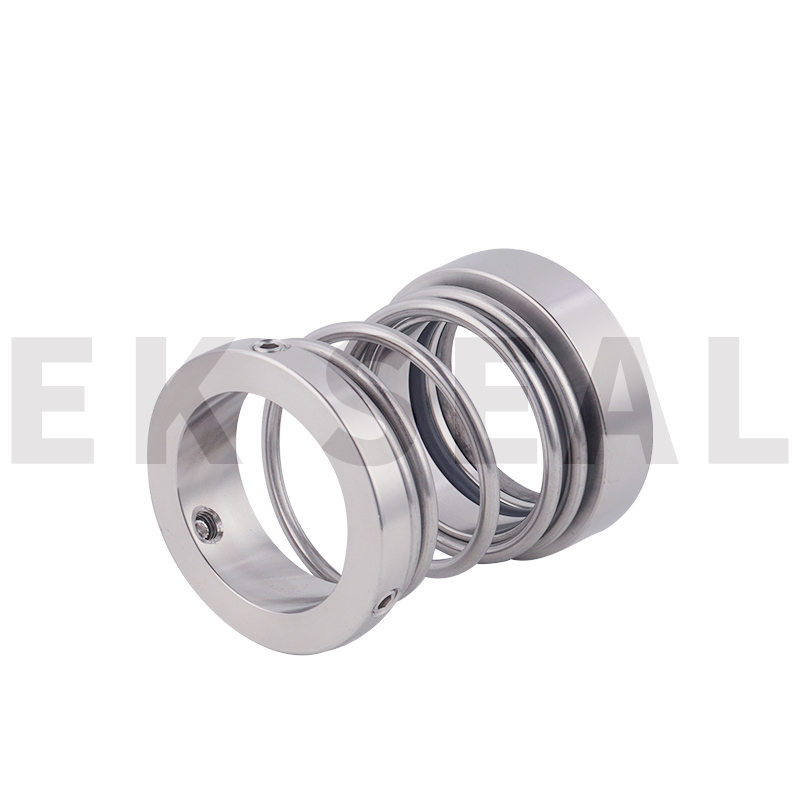

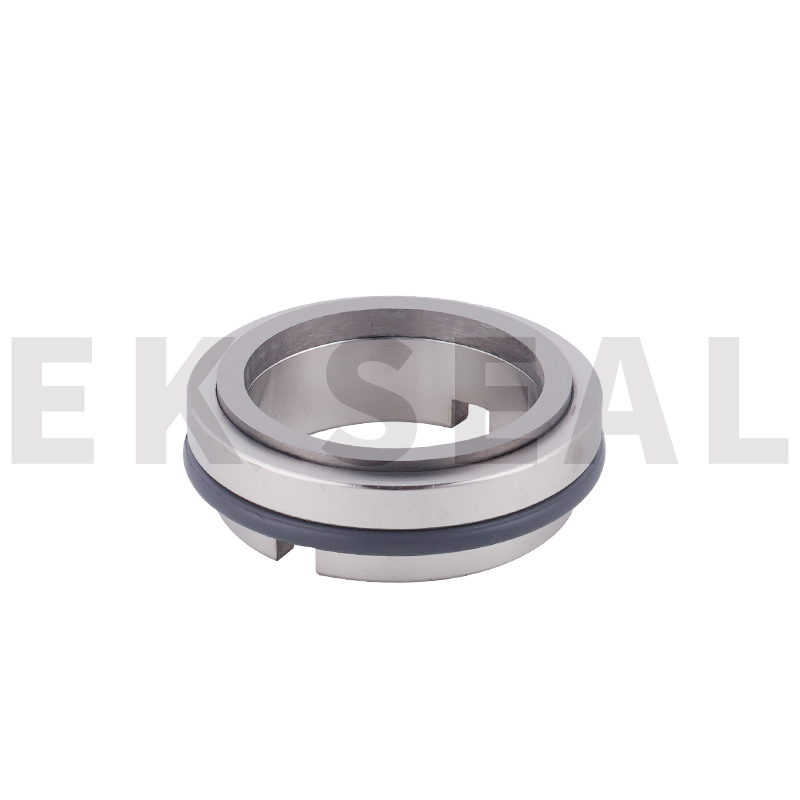

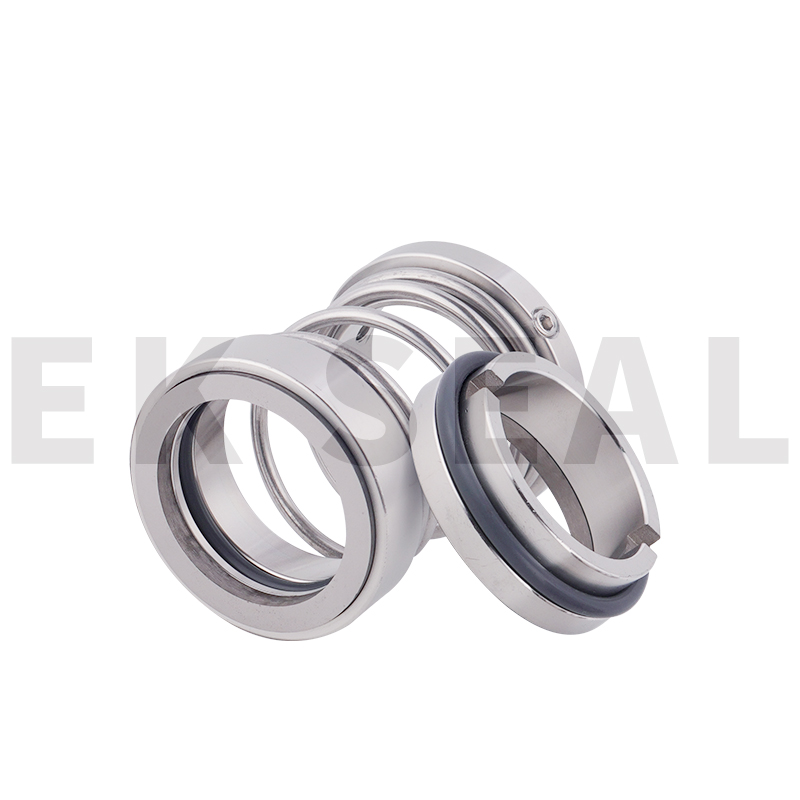

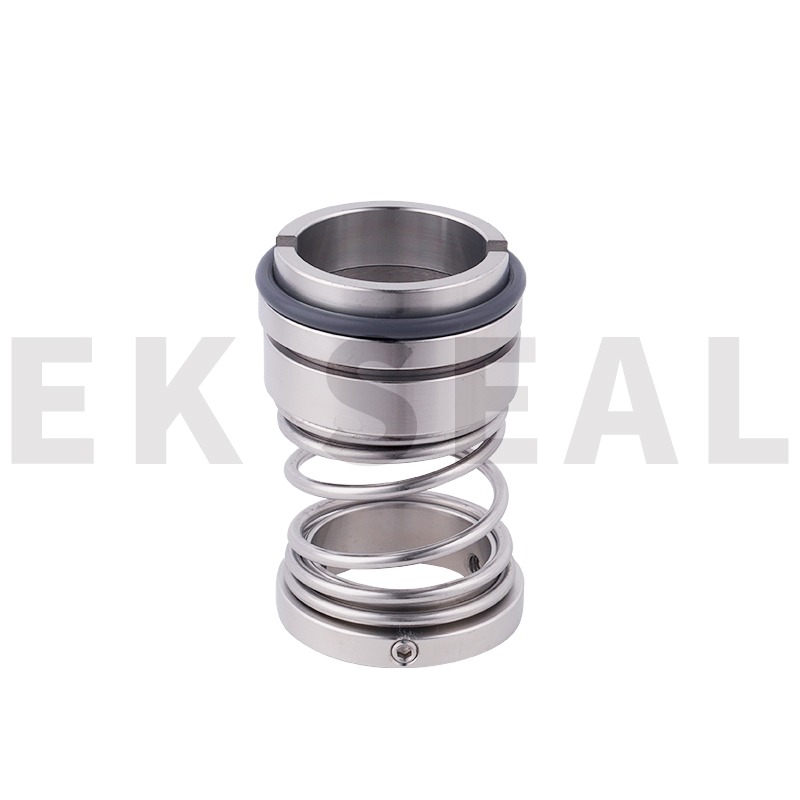

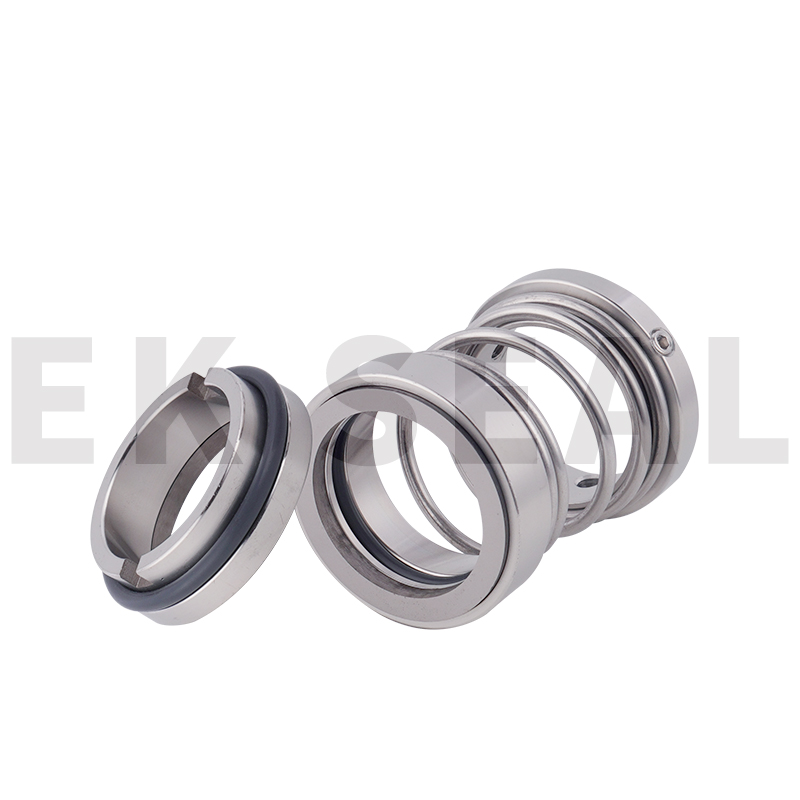

1527 series mechanical seal,Replacement for Vidmap to MG912/ D1-G60 seal,Crane521 seal Flowserve 240 seal,Latty ,18mm-100mm
| Model NO. | EK-1527 |
| Balance | Unbalanced |
| Standard | ISO3069, GB6556, DIN24960 |
| Specification | Inner Diameter: 18 mm to 100 mm |
| Packaging Details | Carton |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time | 2/day |
Views:
We are here to solve your problems in a professional manner
Request ConsultationOur Mechanical seal model 1527 is widely used in many industries such as process industry,chemical industry,pulp and paper industry,water and waste water technology and sugar industry.It is applicable to the types of pumps for MDM,DAB,DIVERTRON,DIVER,MICRA HS,IDEA,D-SUB and can replace the types of mechaical seals for Vidmap to MG912/ D1-G60 seal,Crane521 seal Flowserve 240 seal,Latty.We also can make changes as customers'requirement or totally totally design a new type of mechanical seal to meet clients'needs.
Operating Limits
Pressure: ≤1.0 MPa
Temperature:-20°C~ +150°C
Linear Speed: ≤10m/s
Materials
Rotary Ring:SIC/TC
Stationary Ring: Carbon/SIC/TC
Elastomers:NBR/EPDM/VITON
Springs: SS304/SS316
Metal Parts: SS304/SS316
Mediums
water,polluted water,oil and minor corrosive liquid
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
