960 series mechanical seal,Replacement for Burgman, Aesseal, Roten ,20mm-100mm
| Model NO. | EK-960 |
| Balance | Unbalanced |
| Standard | DIN24960, ISO3069, GB6556-94 |
| Specification | Inner Diameter: 20 mm to 100 mm |
| Packaging Details | Carton |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time | 2/day |
Views:
We are here to solve your problems in a professional manner

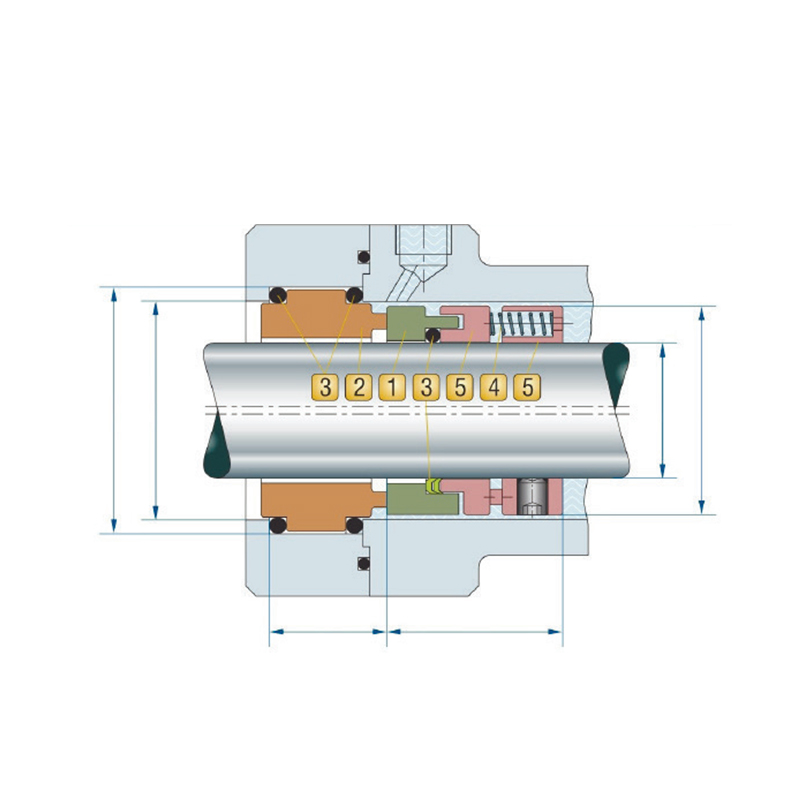

Request ConsultationOur Mechanical seal model 960 is applicable to the series pumps:centrifugal, food, submersible etc.It can replace the seals for Burgman, Aesseal, Roten.We also can make changes as customers'requirement or totally totally design a new type of mechanical seal to meet clients'needs.
Operating Limits
Pressure:≤1.2 MPa
Temperature:-20°C~+200°C
Linear Speed:≤25m/s
Materials
Rotary Ring: SUS/SIC/TC
Stationary Ring: Cerami/SIC/TC
Elastomers: NBR/EPDM/VITON
Springs: SS304
Metal Parts: SS304
Mediums
weak acid, weak alkalis, water and solvents.
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
