FOID series mechanical seal,Suitable for Water Pumps, Circulating Pumps and Vacuum Pumps ,35mm-100mm
| Model NO. | EK-FOID |
| Balance | Unbalanced |
| Standard | DIN24250, ISO3069, GB6556, EN12756 |
| Specification | Inner Diameter:35 mm to100 mm |
| Packaging Details | Carton |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time | 2/day |
Views:
We are here to solve your problems in a professional manner

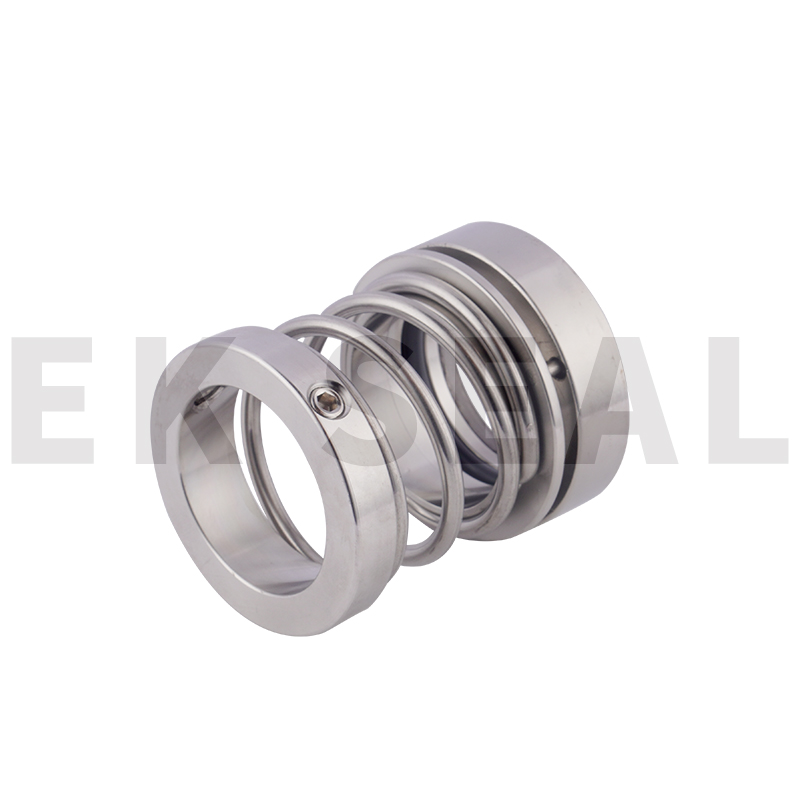

Request ConsultationOur Mechanical seal model FOID is widely used in Water Pumps, Circulating Pumps and Vacuum Pumps.Structural Features: single end, unbalanced, fixed direction of rotation, touched coil spring transmission. This component has a touched coil spring so you need to pay attention to the shaft rotating direction.The normal material combination is sic/sic/VITON/ss304.We also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.
Operating Limits
Pressure: ≤1 MPa
Temperature: -20°C~ +230 ºC
Linear Speed:≤10m/s
Materials
Rotary Ring:Ceramics/TC
Stationary Ring:SIC/TC
Elastomers:NBR/VITON
Springs:SS304/SS316
Metal Parts: SS304 /SS316
Mediums
Oil,water,salt,alkali,organic solution,etc
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
