DC-A04 series mechanical seal,High temperature and corrosion resistance ,24mm-100mm
| Model NO. | EK-DC-A04 |
| Balance | Unbalanced |
| Standard | ISO3069, GB6556, DIN24960 |
| Specification | Inner Diameter: 24 mm to 100 mm |
| Packaging Details | Carton |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time | 2/day |
Views:
We are here to solve your problems in a professional manner

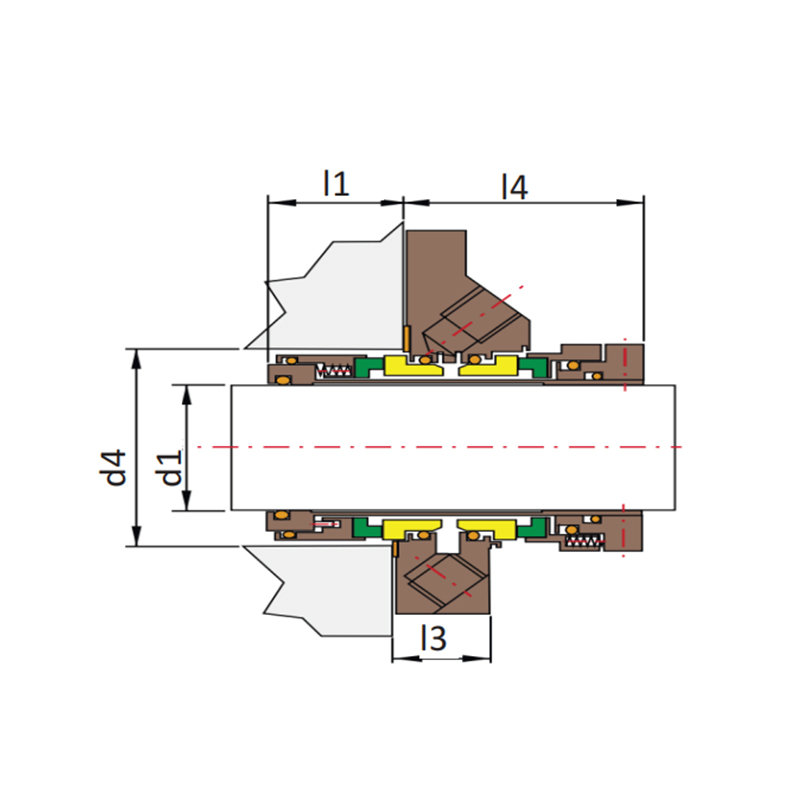

Request ConsultationOur mechanical seal model DC-A04 is equivalent to AESSEAL CDP/CDPN dual cartridge seal. It has the superior quality of high temperature and corrosion resistance.The normal material combination is sic/sic/viton/ss304.We also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.
Operating Limits
Pressure:≤2.1 MPa
Temperature:-20°C~+200°C
Linear Speed:≤25m/s
Materials
Rotary Ring:SIC/TC
Stationary Ring:SIC/TC
Elastomers:NBR/EPDM/VITON
Springs:SSS304/SS316
Metal Parts:SS304/SS316
Mediums
weak acid, weak alkalis, water and solvents.
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
