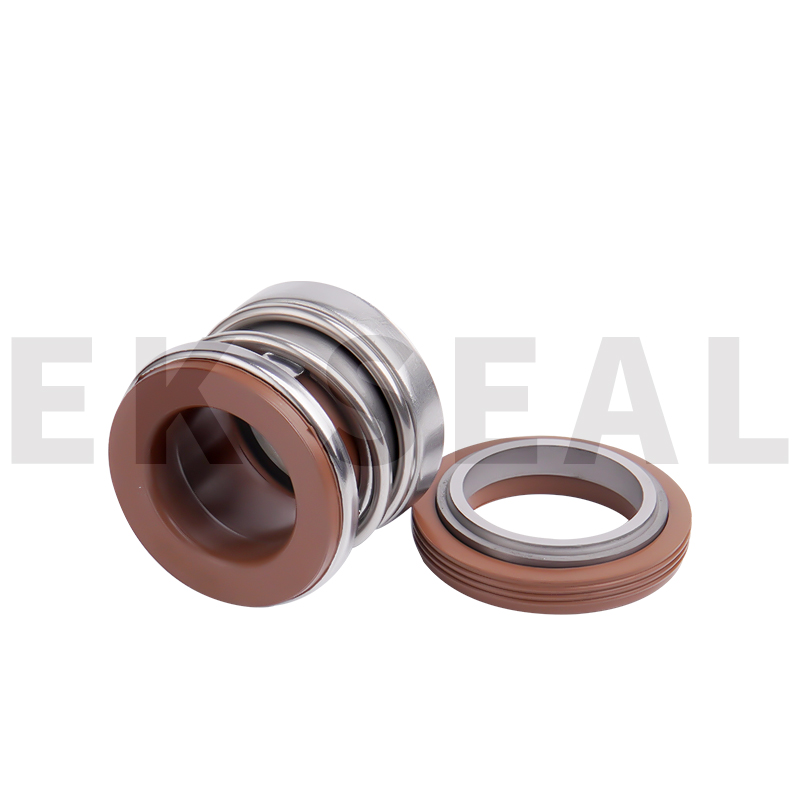

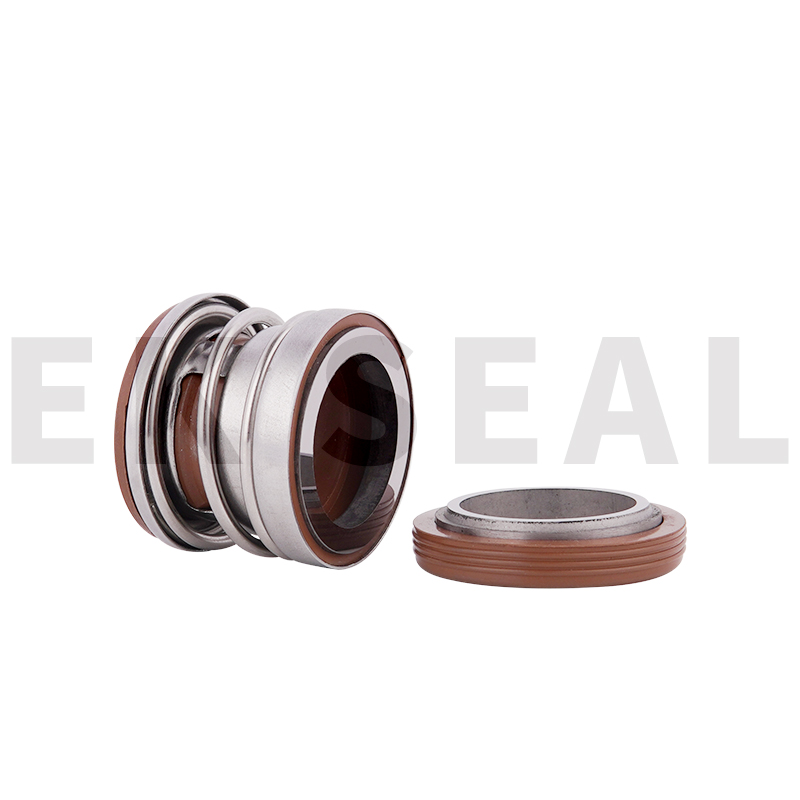

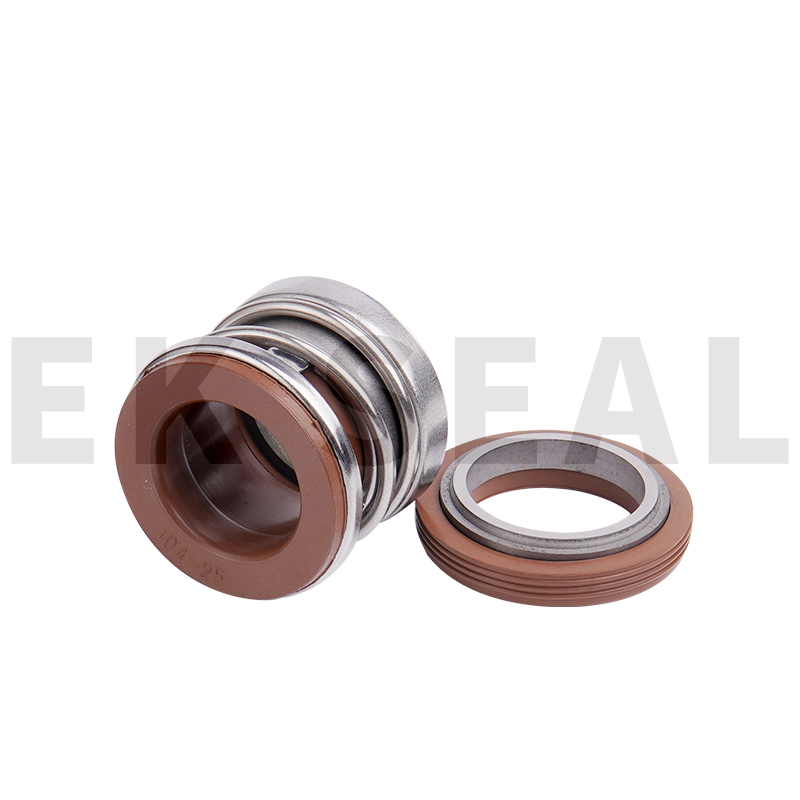

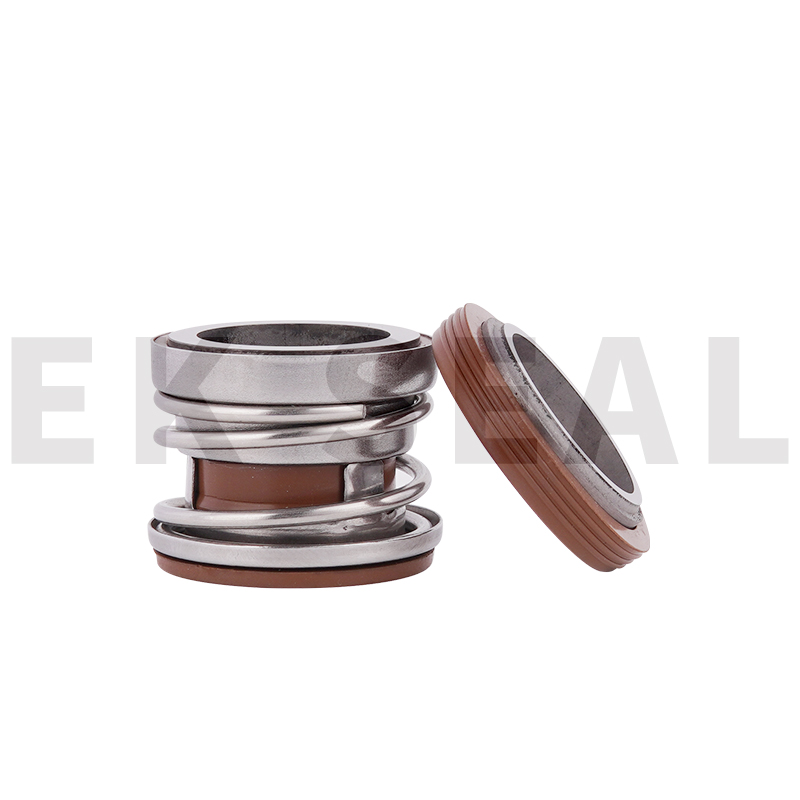

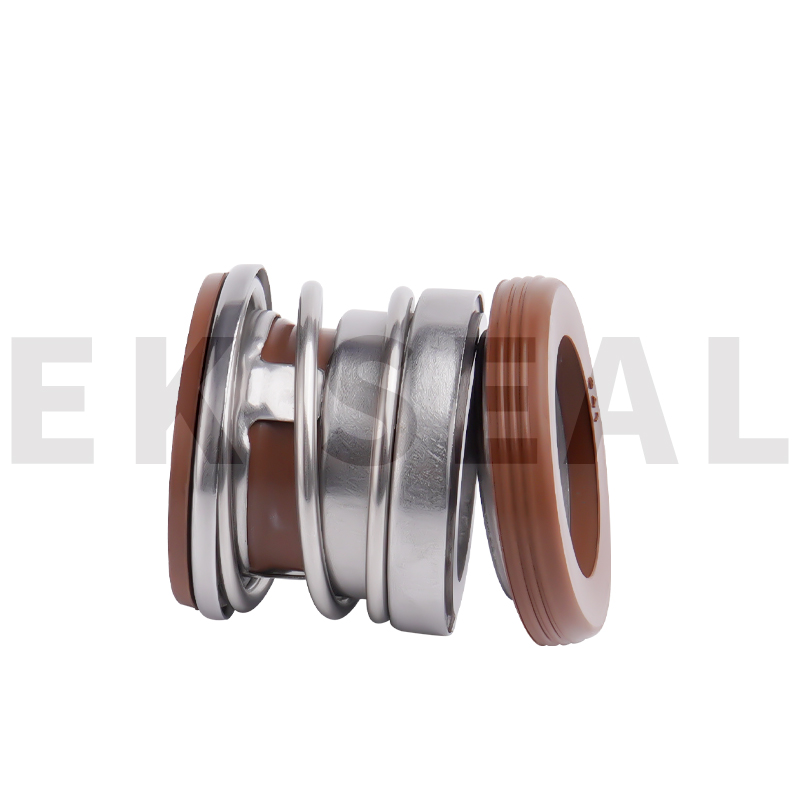

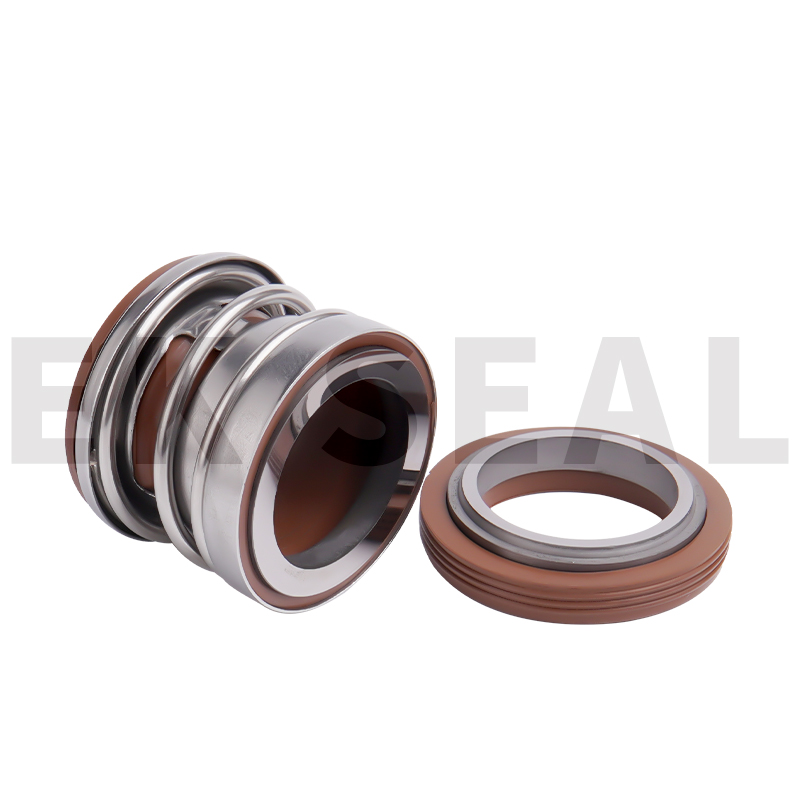

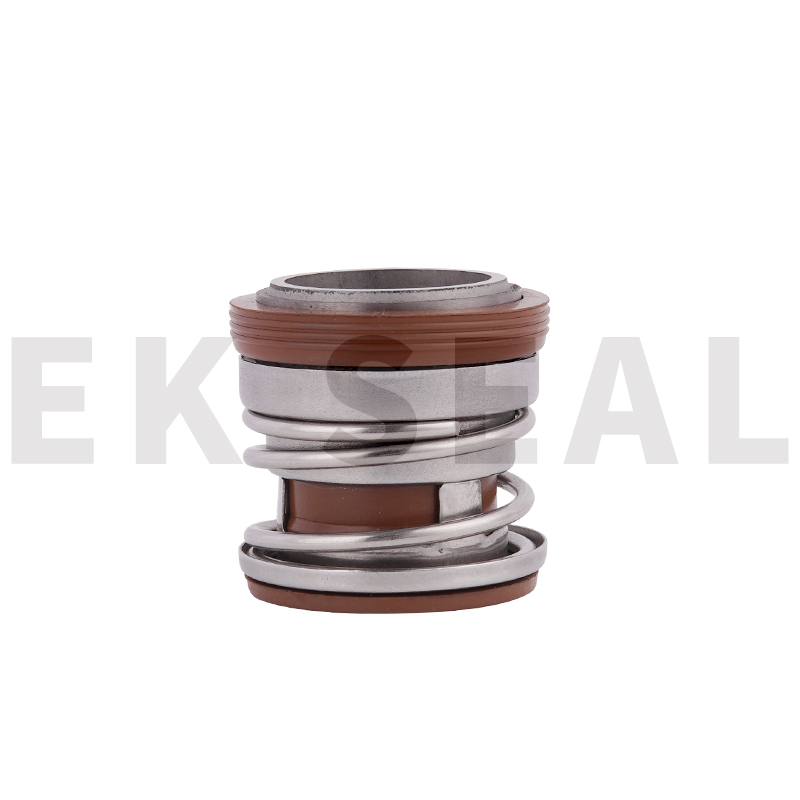

104Q series mechanical seal,High temperature and corrosion resistance ,11mm-45mm
| Model NO. | EK_104Q |
| Balance | Unbalanced |
| Standard | DIN24960, ISO3069, GB6556 |
| Specification | Inner Diameter 11 mm to 45 mm |
| Packaging Details | Carton |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time | 2/day |
Views:
We are here to solve your problems in a professional manner
Request ConsultationOur Mechanical seal model 104Q has the superior quality of high temperature and corrosion resistance.The normal material combination is sic/sic/VITON/ss304.We also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.
Operating Limits
Pressure:≤0.8MPa
Temperature: -20°C~ +150 ºC
Linear Speed:≤3000r/min
Materials
Rotary Ring:Carbon /SIC/TC
Stationary Ring:Ceramics/SIC/R
Elastomers:NBR//EPDM/VITON
Springs:SS304 /SS316
Metal Parts: SS304 /SS316
Mediums
Water,sewage,oil and other weakcorrosive liquid
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
