502 series mechanical seal,Suitable for industrial pumps ,14mm-100mm
| Model NO. | EK-502 |
| Balance | Unbalanced |
| Standard | DIN24960 |
| Specification | Inner Diameter: 35 mm to 100 mm |
| Packaging Details | Carton |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time | 2/day |
Views:
We are here to solve your problems in a professional manner

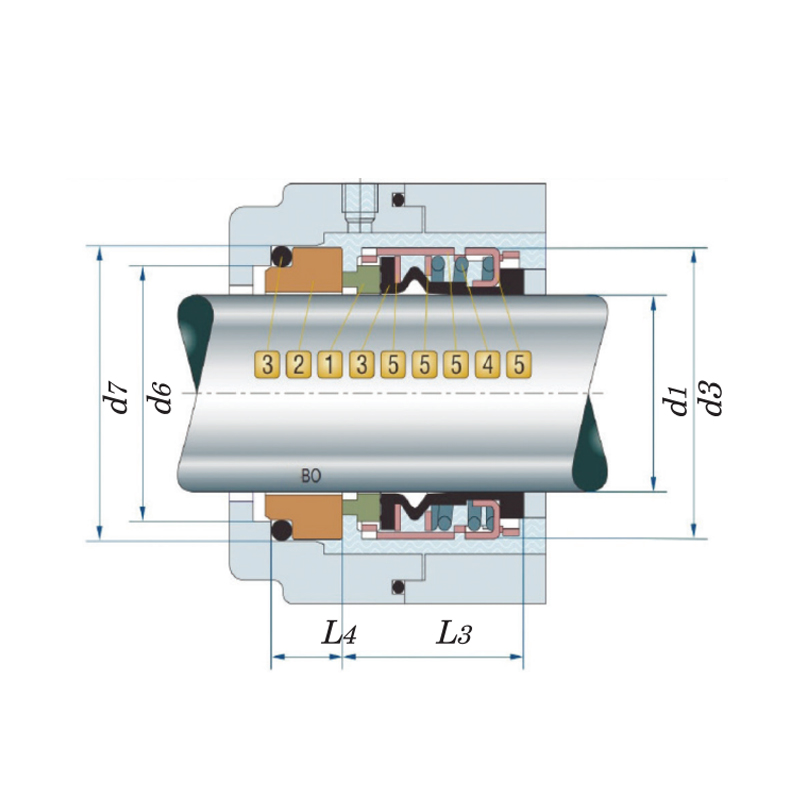

Request ConsultationOur mechanical seal model 502 can replace AESSEAL B07S and CRANE 502 ,which is widely used for industrial pumps. BO seat and BP seat are usually used for 502 type. The normal material combination include resin carbon/ceramic/nbr/ss304,resin carbon/tc/nbr/ss304,sic/sic/nbr/ss304 ,tc/tc/nbr/ss304 and so on. We also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.
Operating Limits
Pressure:≤0.5 MPa
Temperature:-20°C~+180°C
Speed:≤12m/s
Materials
Rotary Ring: SIC /TC
Stationary Ring: Carbon / SIC /TC
Elastomers: EPDM/VITON /NBR
Springs: SS304 /SS316
Metal Parts: SS304 /SS316
Mediums
weak acid, weak alkalis, water and solvents.
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
