BIA series mechanical seal,Suitable for Clean Water Pumps, Piping Pumps and Vacuum Pumps ,12mm-100mm
| Model NO. | EK-BIA |
| Balance | Unbalanced |
| Standard | DIN24960, ISO3069, GB6556, EN12756 |
| Specification | Inner Diameter: 12 mm to 100 mm |
| Packaging Details | Carton |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time | 2/day |
Views:
We are here to solve your problems in a professional manner
Request ConsultationOur Mechanical seal model BIA (also known as Type 21 or Type 43) can be applied in Clean Water Pumps, Piping Pumps and Vacuum Pumps.This type of seal is widely used in oil and water circulation pumps, piping pumps, and vacuum pumps for industries such as sewage treatment and paper-making. This product can be an alternative to similar products from EG&G SEAL OL.We also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.
Operating Limits
Pressure: ≤0.8 MPa
Temperature: - 20°C~ +120 ºC
Linear Speed: ≤10 m/s

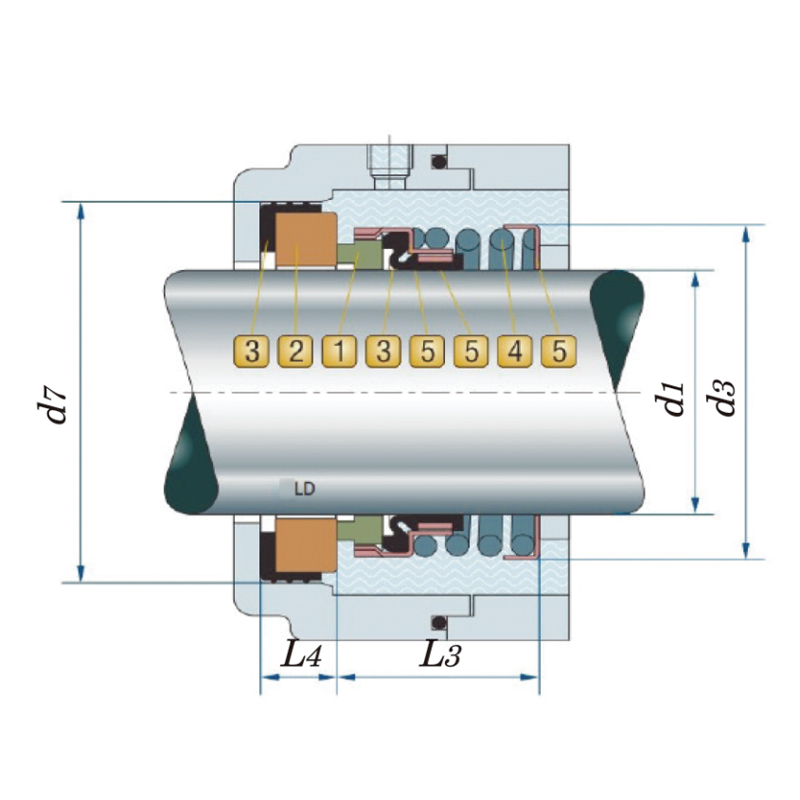

Materials
Rotary Ring: Carbon/SIC/TC
Stationary Ring: Al203/SIC/TC
Elastomers:NBR/EPDM/VITON
Springs: SS304/SS316
Metal Parts: SS304/SS316
Mediums
oil, water, weak acid and alkali and other corrosive mediums.
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
