FT/SB series mechanical seal,High temperature and corrosion resistance ,10mm-30mm
| Model NO. | EK-FT-VSB |
| Balance | Unbalanced |
| Standard | DIN24960, ISO3069, GB6556 |
| Specification | Inner Diameter 10 mm to 30 mm |
| Packaging Details | Carton |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time | 2/day |
Views:
We are here to solve your problems in a professional manner

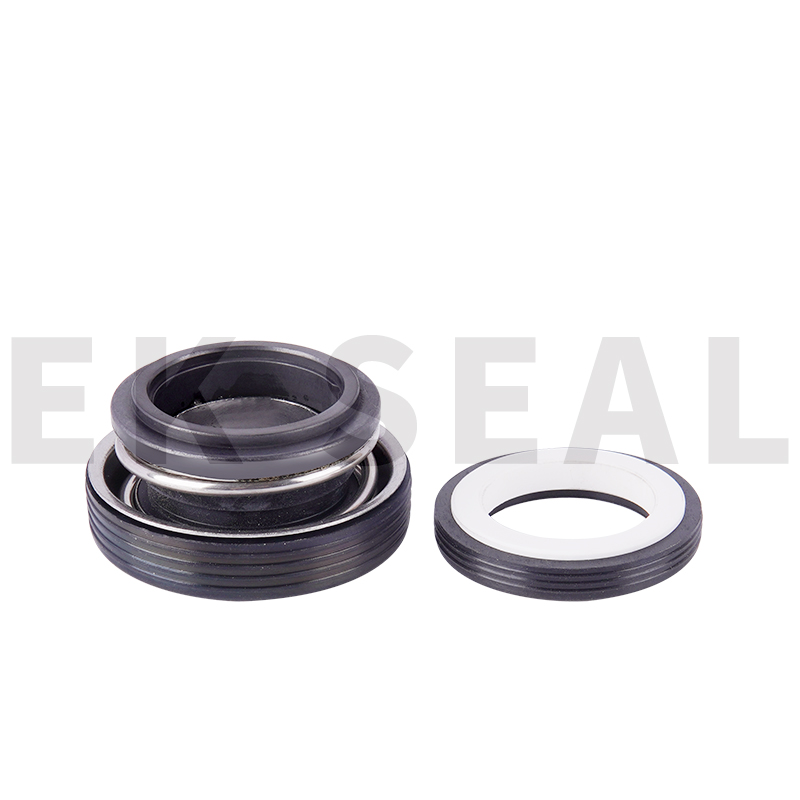

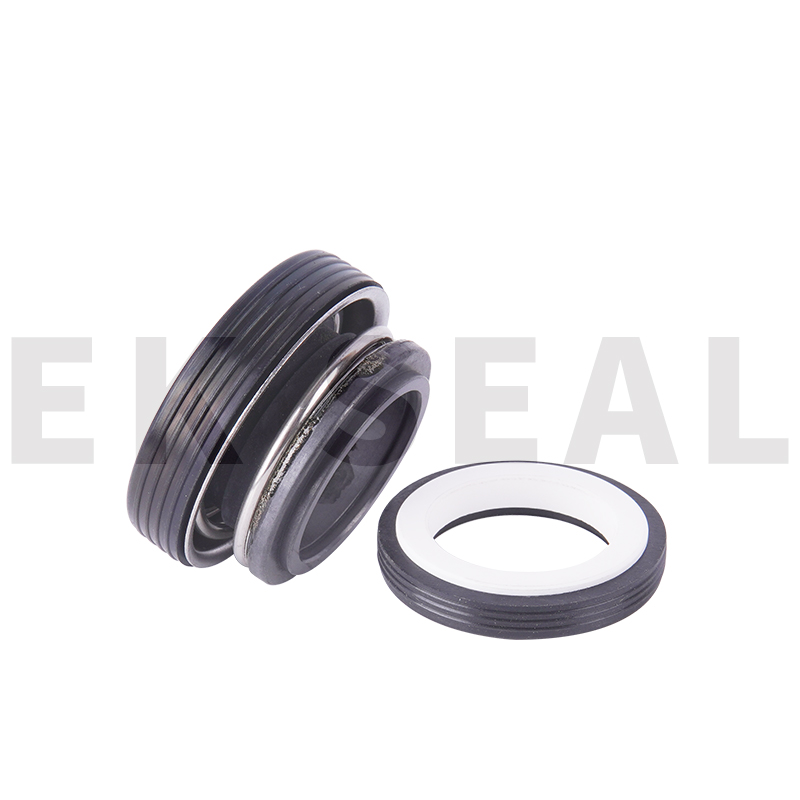

Request ConsultationOur Mechanical seal model FT/SB has the superior quality of high temperature and corrosion resistance.The normal material combination is sic/sic/VITON/ss304.We also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.
Operating Limits
Pressure:≤0.5MPa
Temperature: -30°C~ +200 ºC
Linear Speed:≤15m/s
Materials
Rotary Ring:Carbon /SIC/TC
Stationary Ring:Ceramics/SIC/WC
Elastomers:NBR//EPDM/VITON
Springs:SS304 /SS316
Metal Parts: SS304 /SS316
Mediums
oil, water, amorphism acid, alkali, salt, and organic solvents.
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
