Model NO. EK-T2-FBD
Balance Unbalanced
Standard ISO3069, GB6556, DIN24960
Specification Inner Diameter: 20 mm to 120 mm
Packaging Details Carton
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time 2/day

Views:

We are here to solve your problems in a professional manner

Request Consultation

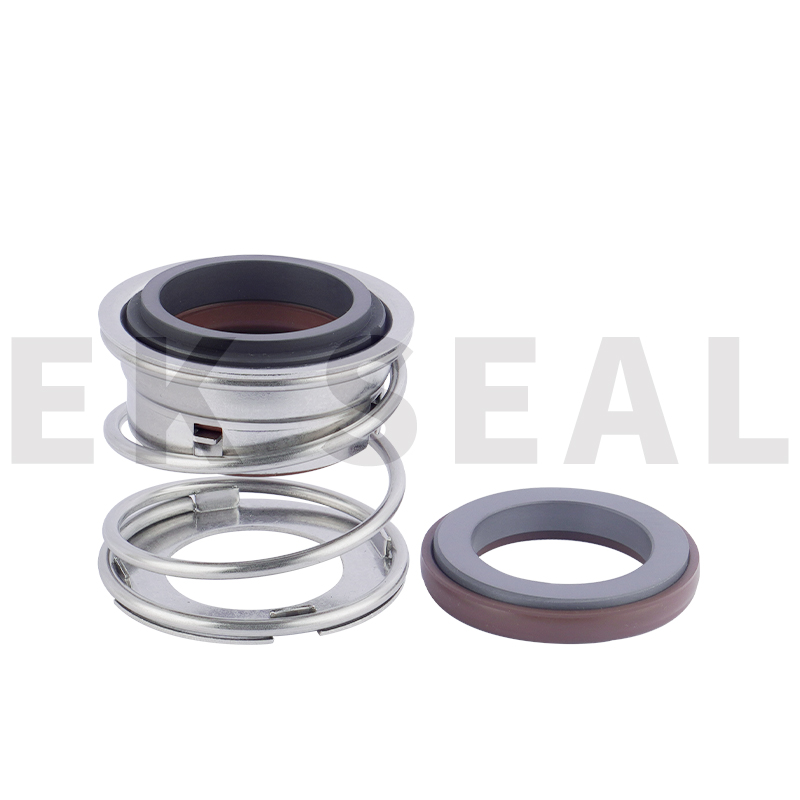

Our Mechanical seal model T2/FBD is widely used in Clean Water, Sewage Water, Oil and other moderately corrosive fluids. Designed for industrial pump, blower pump, diving pump, circulating pump mechanical seal, replacing the mechanical of EagleBurgmann and John Crane mechanical seal.We also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

Operating Limits

Pressure: ≤1.4 MPa

Temperature:-20°C~ +120°C

Linear Speed: ≤15 m/s

Materials

Rotary Ring: SIC/TC/Carbon

Stationary Ring: SIC/TC

Elastomers: Viton/EPDM/Aflas/FFKM

Springs: SS304/SS316L/HC276

Metal Parts: SS304/SS316

Mediums

fresh water, sewage, oil and other moderately corrosive fluids.

Customization

Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

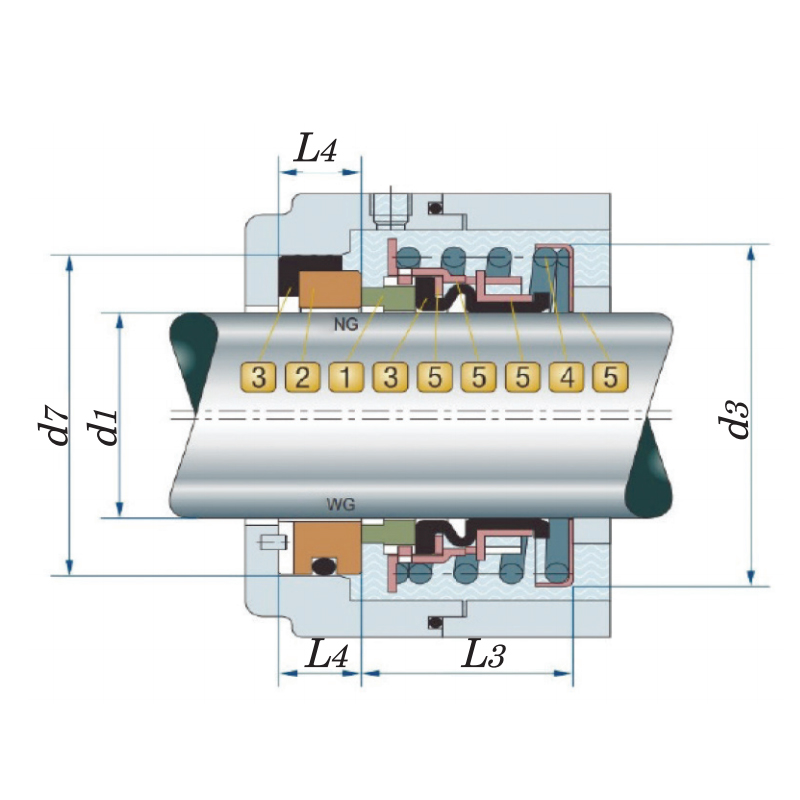

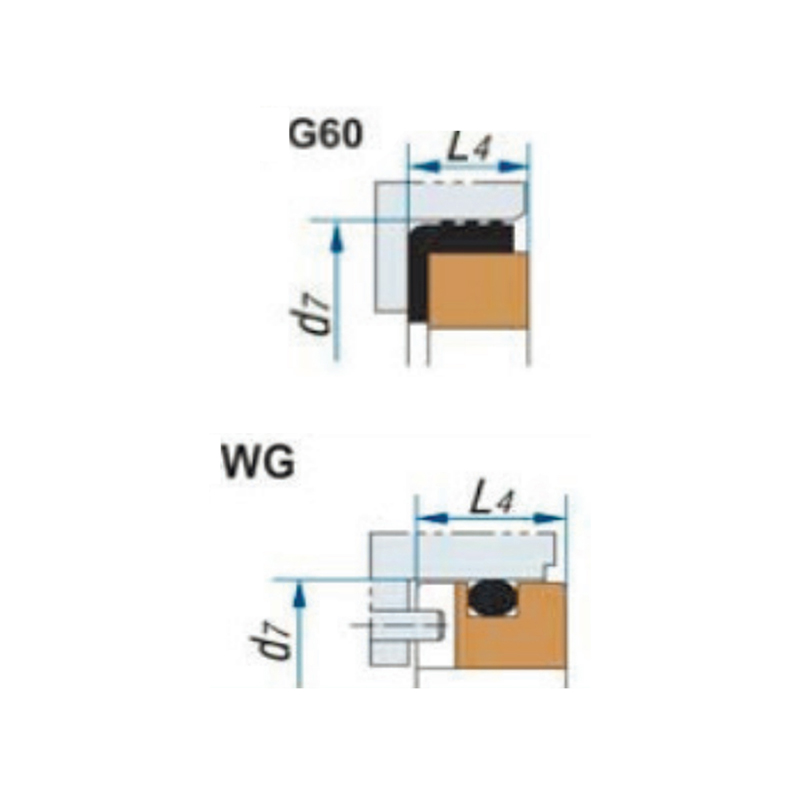

EK_T2_FBD_para1.jpg EK_T2_FBD_para2.jpg
