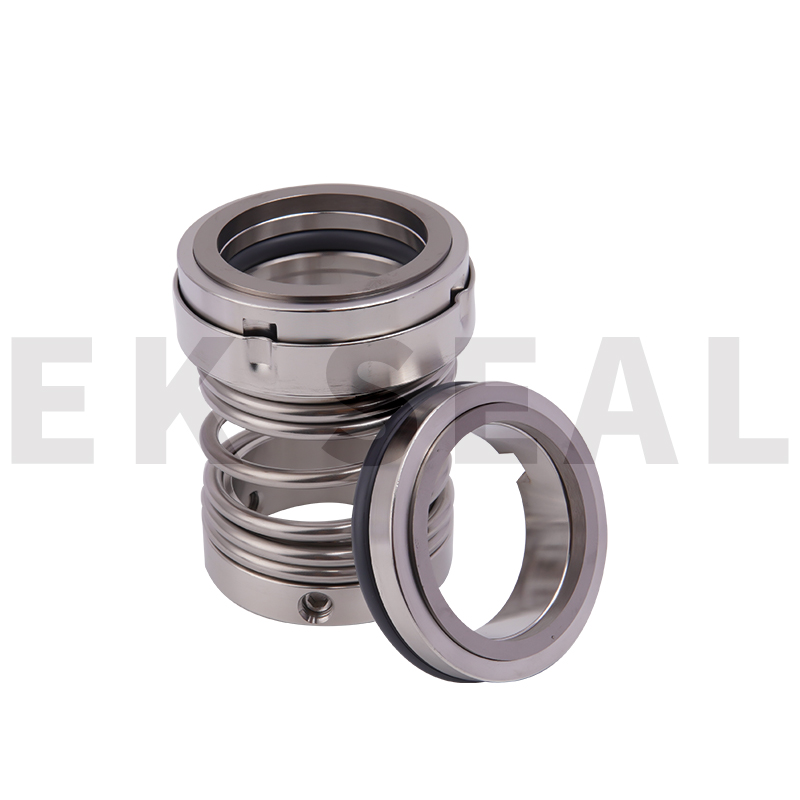

103 series mechanical seal,Suitable for chemical pumps and clean water pumps ,20mm-120mm
| Model NO. | EK-103 |
| Balance | Unbalanced |
| Standard | DIN24960, ISO3069, GB6556-94 |
| Specification | Inner Diameter: 20 mm to 120 mm |
| Packaging Details | Carton |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time | 2/day |
Views:
We are here to solve your problems in a professional manner

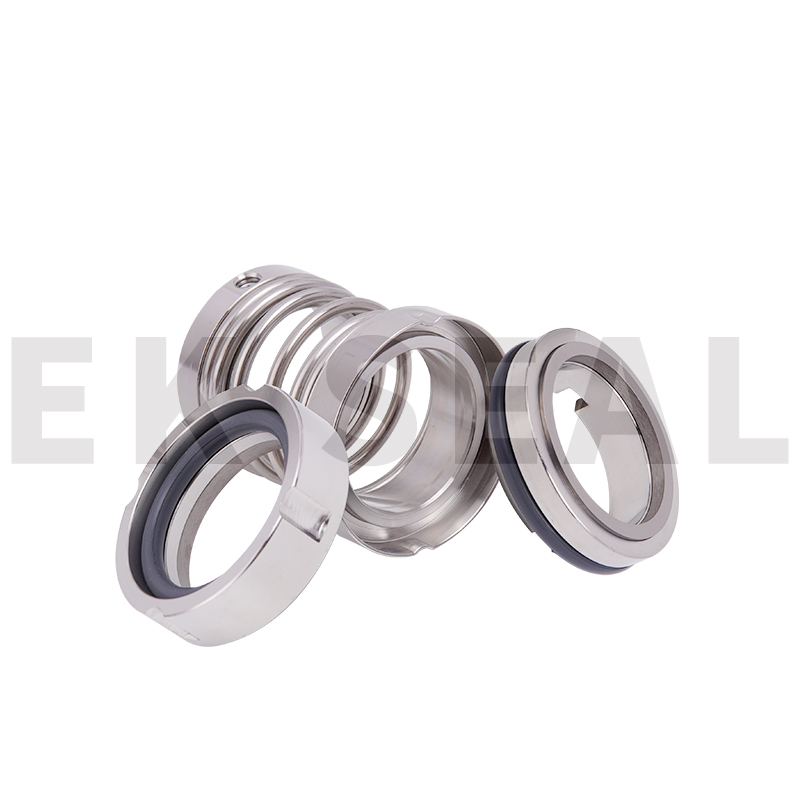

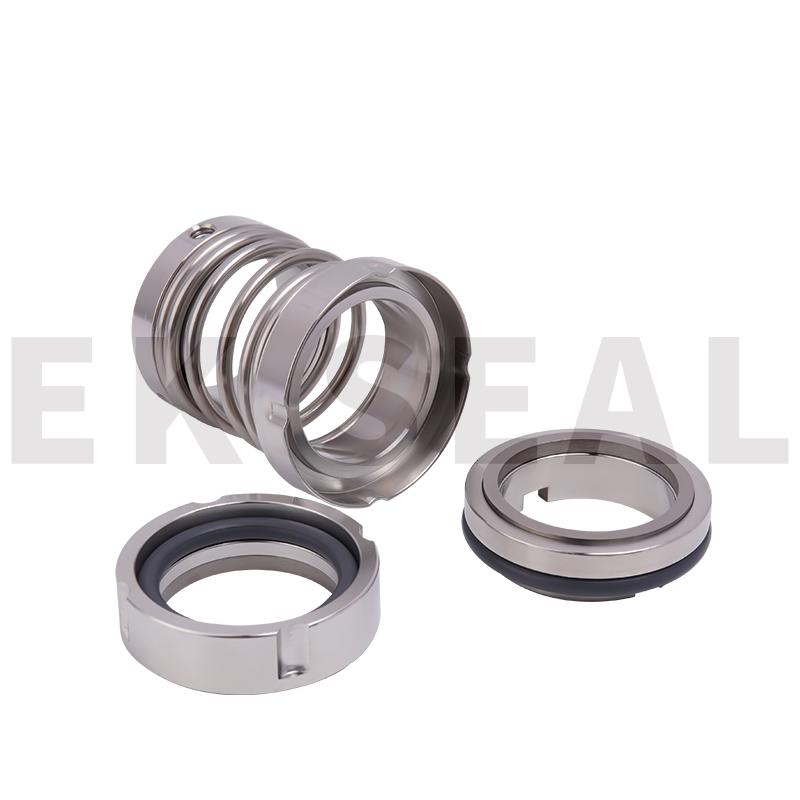

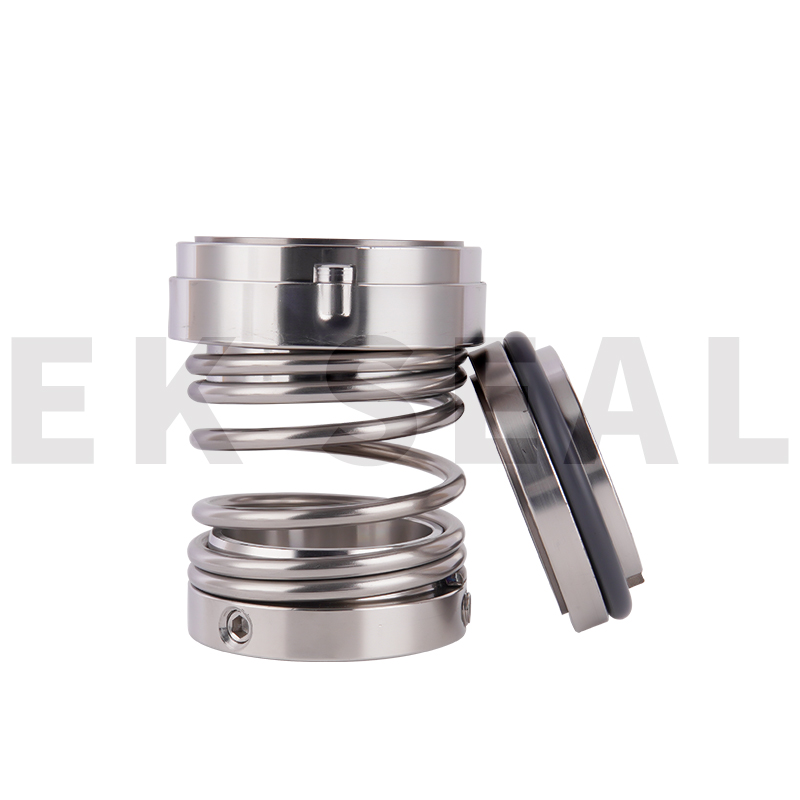

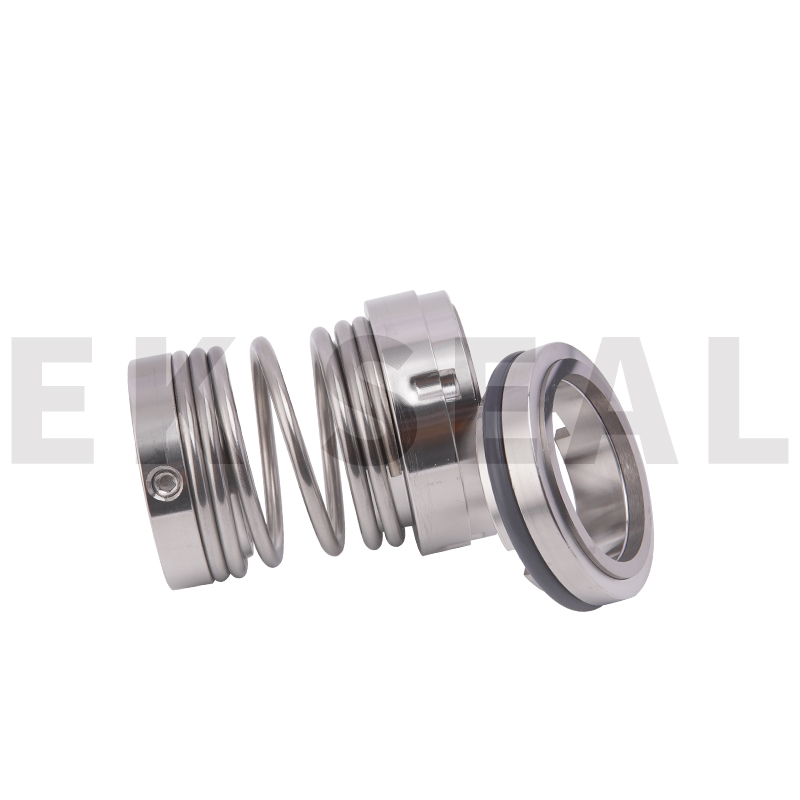

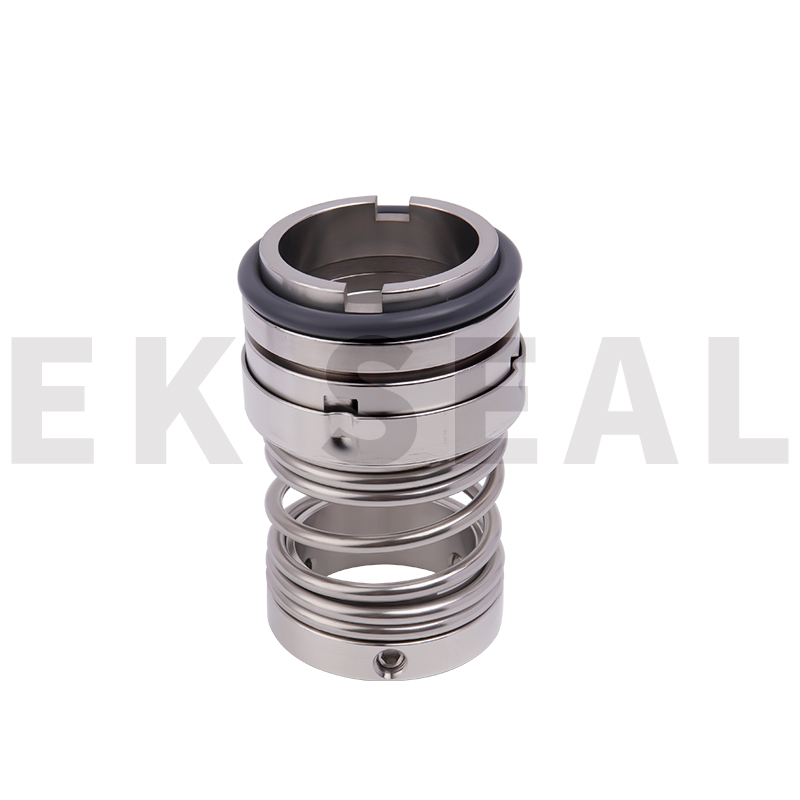

Request ConsultationOur Mechanical seal model 103 is widely used in many types of chemical pumps and clean water pumps. Its component of single end, unbalanced, fixed direction of rotation, touched coil spring transmission which has a touched coil spring so you need to pay attention to the shaft rotating direction.We also can make changes as customers'requirement or totally totally design a new type of mechanical seal to meet clients'needs.
Operating Limits
Pressure: ≤0.8 MPa
Temperature:-20°C~+220°C
Linear Speed: ≤15 m/s
Materials
Rotary Ring: Carbon/SIC/TC
Stationary Ring: SIC/TC
Elastomers: NBR/EPDM/VITON/Aflas/PTFE/FFKM
Springs: SS304/SS316
Metal Parts: 410S/SS304/SS316/SS316L
Mediums
weak acid, weak alkalis, water and solvents.
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
