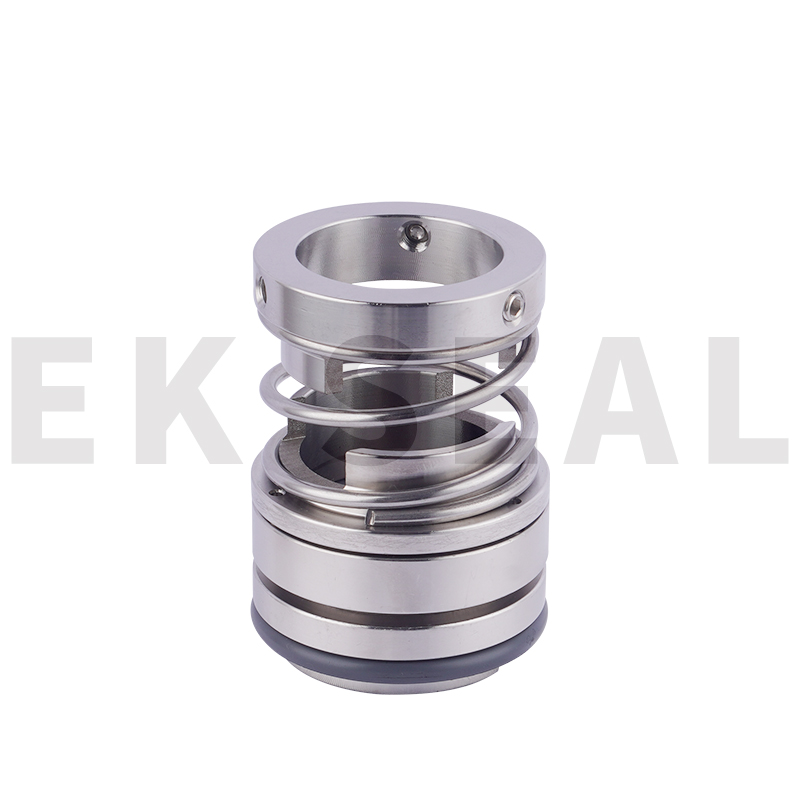

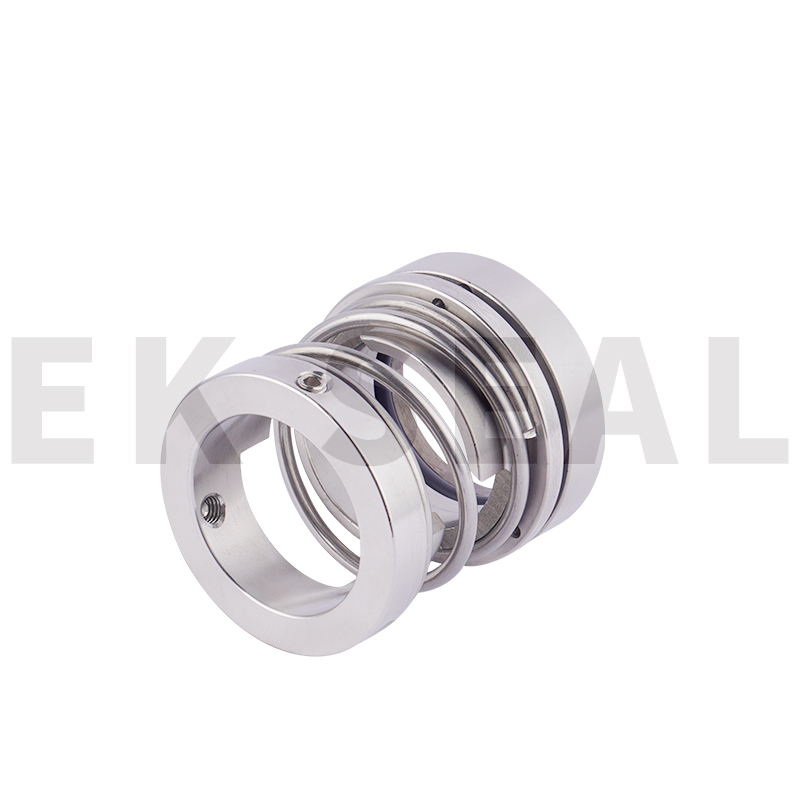

124 series mechanical seal,Replacement for Burgman, Aesseal, Roten ,20mm-95mm
| Model NO. | EK-124 |
| Balance | Unbalanced |
| Standard | DIN24960, ISO3069, GB6556-94 |
| Specification | Inner Diameter: 20 mm to 95 mm |
| Packaging Details | Carton |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time | 2/day |
Views:
We are here to solve your problems in a professional manner

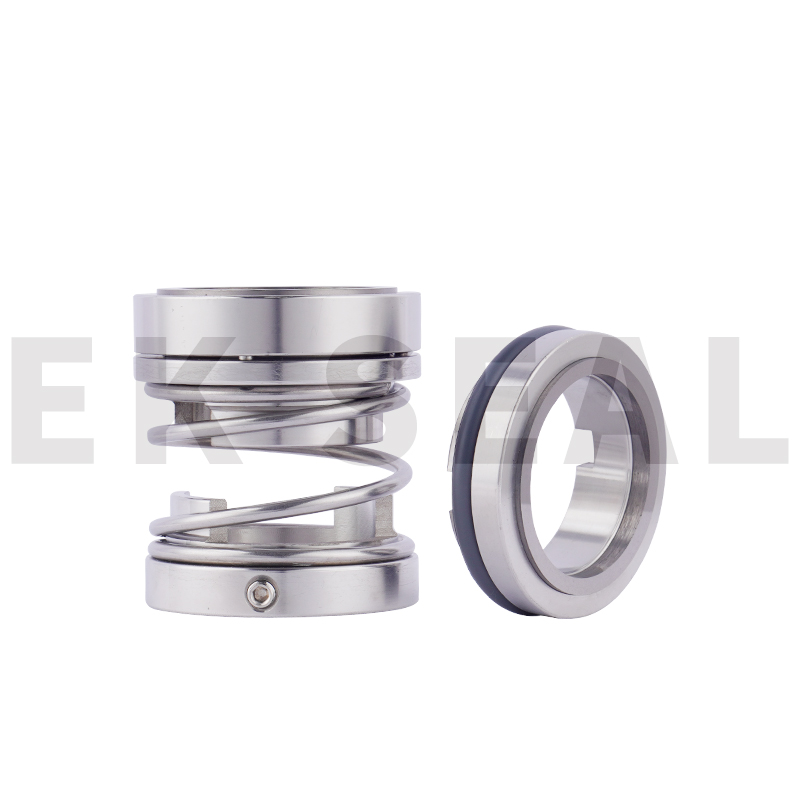

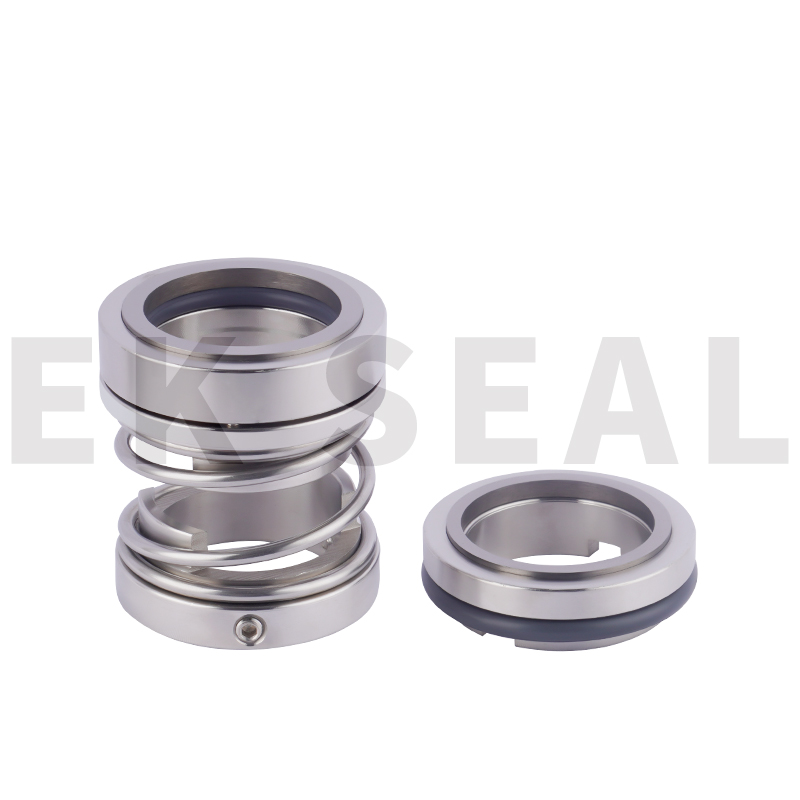

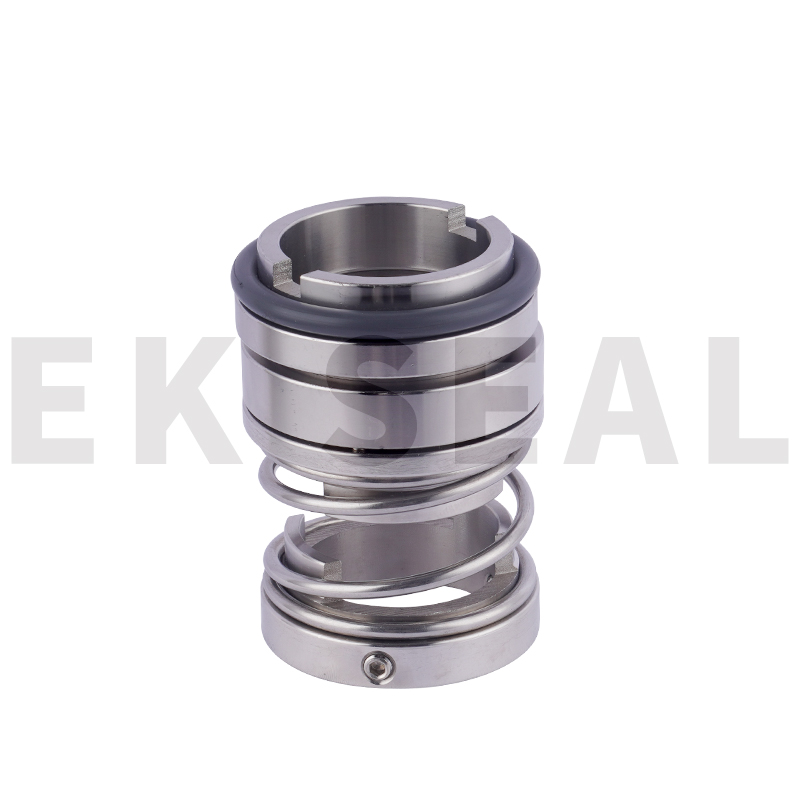

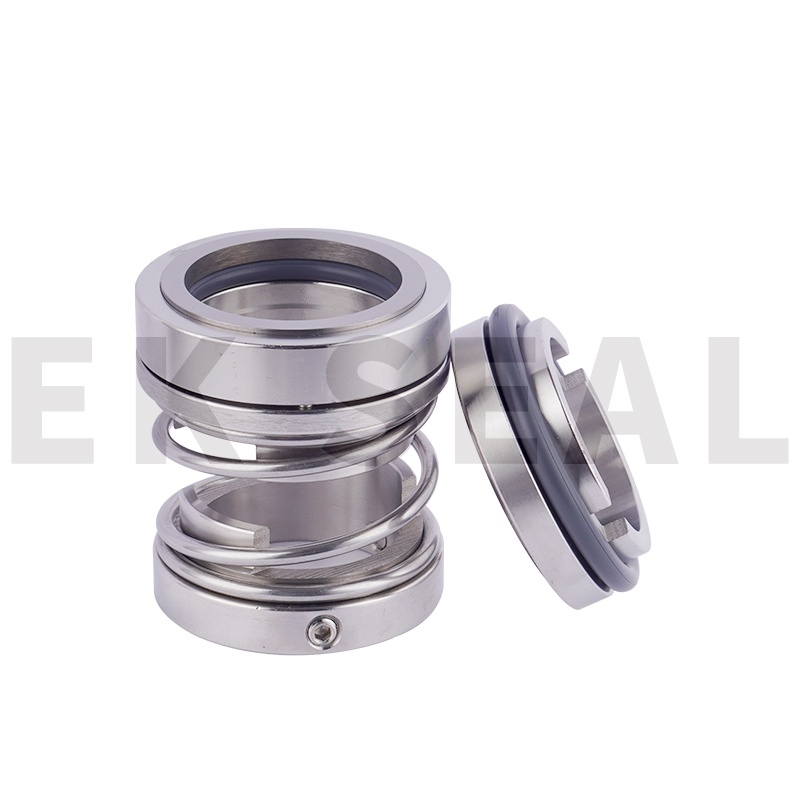

Request ConsultationOur Mechanical seal model 124 can be applied in the pumps for SPERONl, Hydrostal, Grundfos.It can replace the seals for Burgman, Aesseal, Roten.Its component of single end, unbalanced, fixed direction of rotation, touched coil spring transmission which has a touched coil spring so you need to pay attention to the shaft rotating direction.We also can make changes as customers'requirement or totally totally design a new type of mechanical seal to meet clients'needs.
Operating Limits
Pressure:≤1.2 MPa
Temperature:-20°C~+180°C
Linear Speed:≤10m/s
Materials
Rotary Ring: SIC/TC

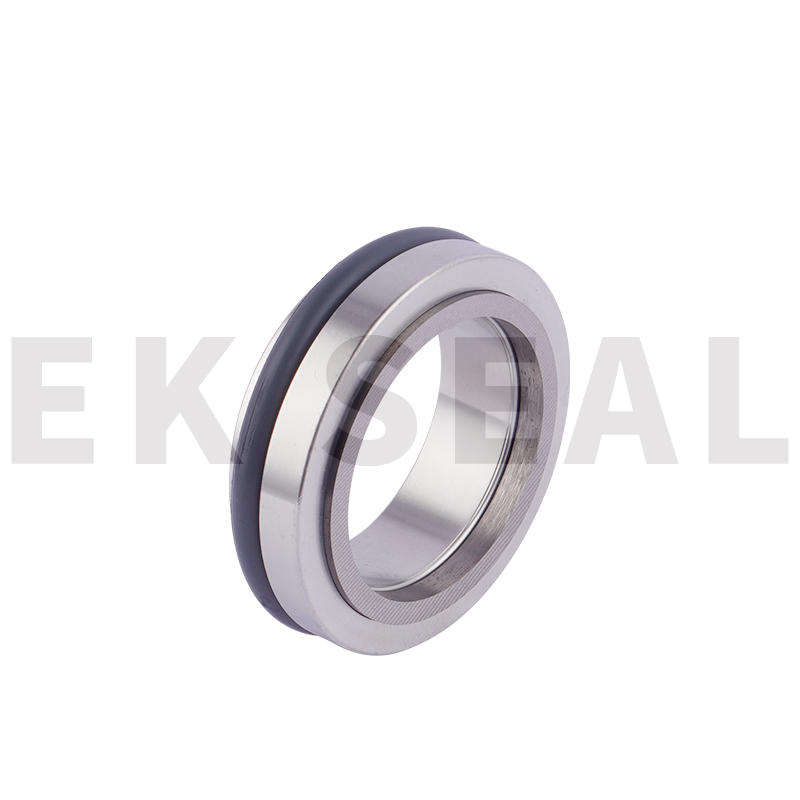

Stationary Ring: Cerami/SIC/TC
Elastomers: NBR/EPDM/VITON
Springs: SS304
Metal parts: SS304
Mediums
weak acid, weak alkalis, water and solvents.
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
