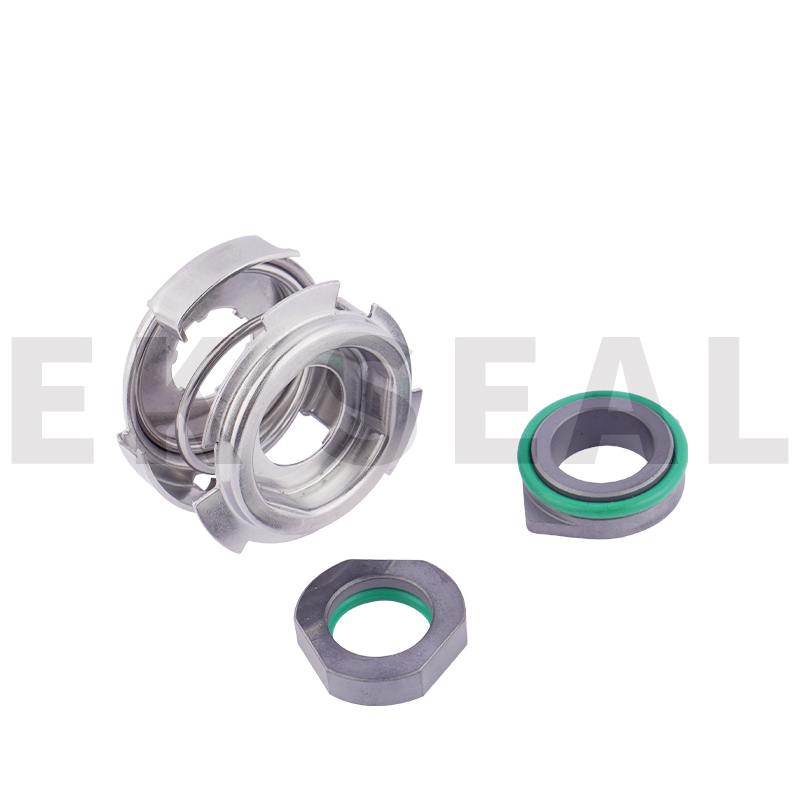

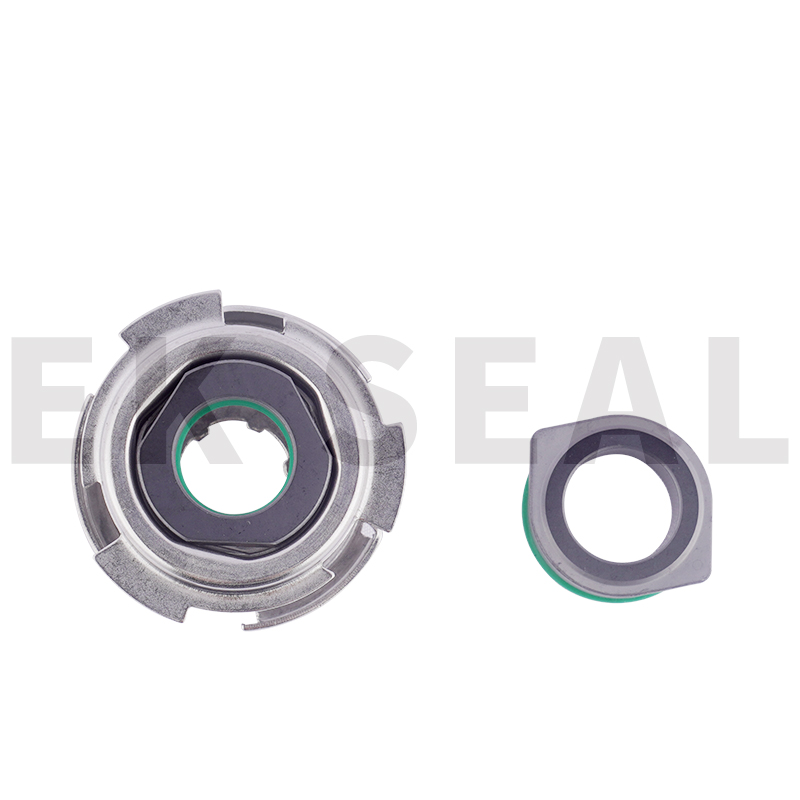

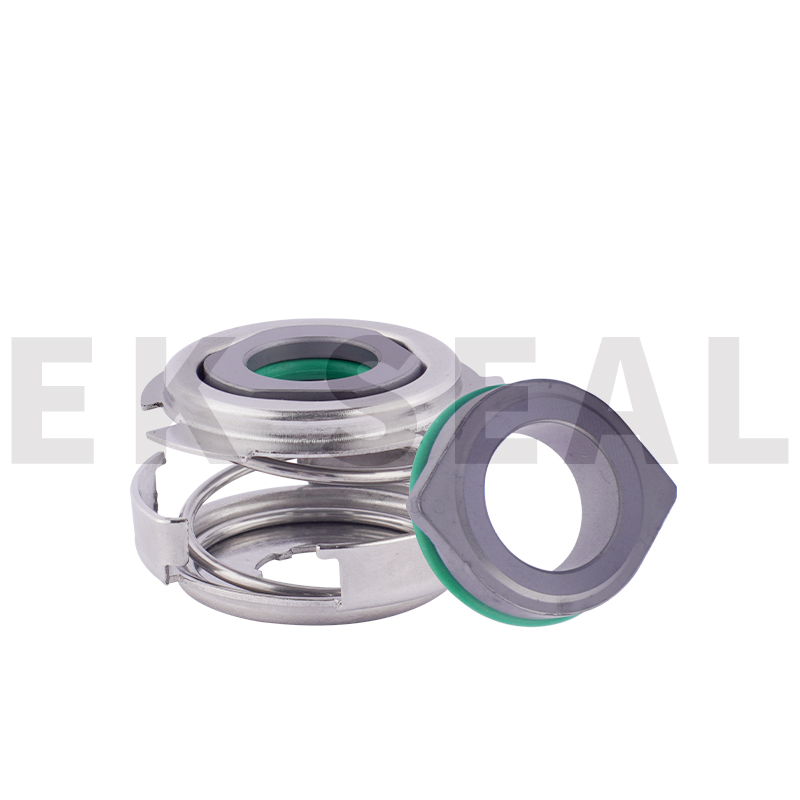

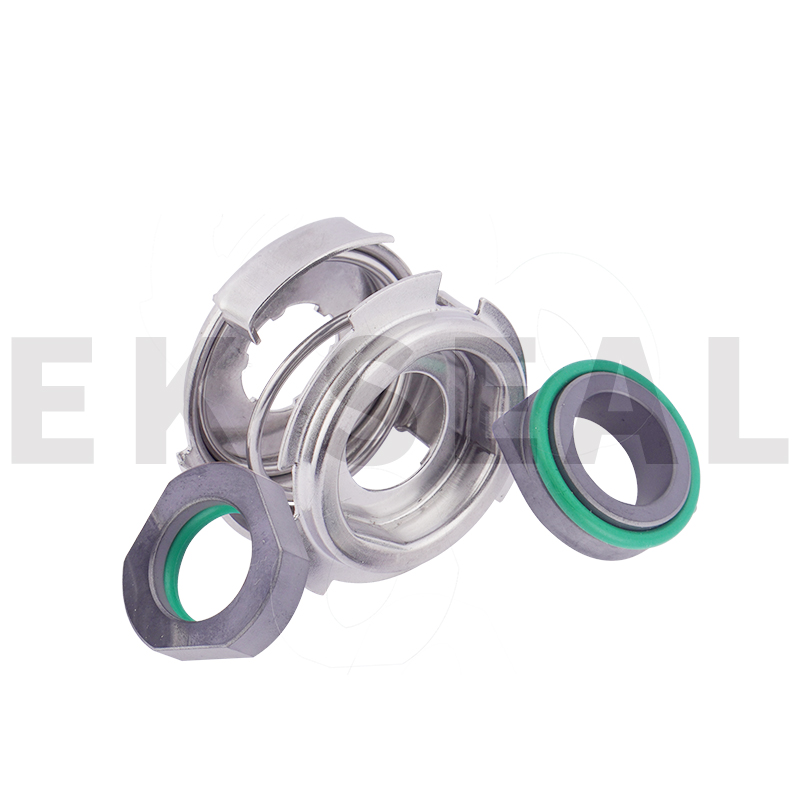

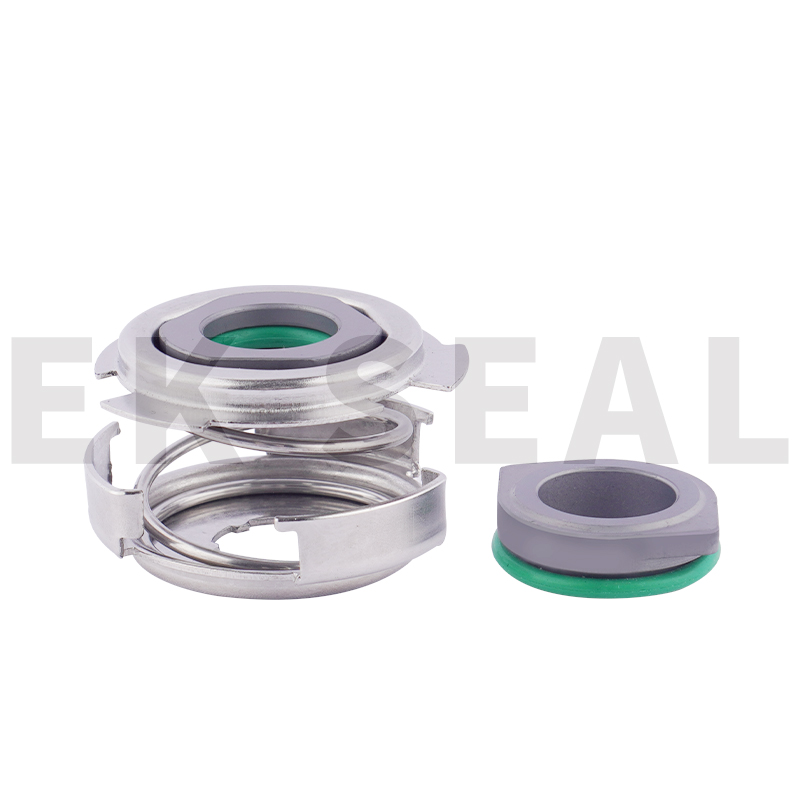

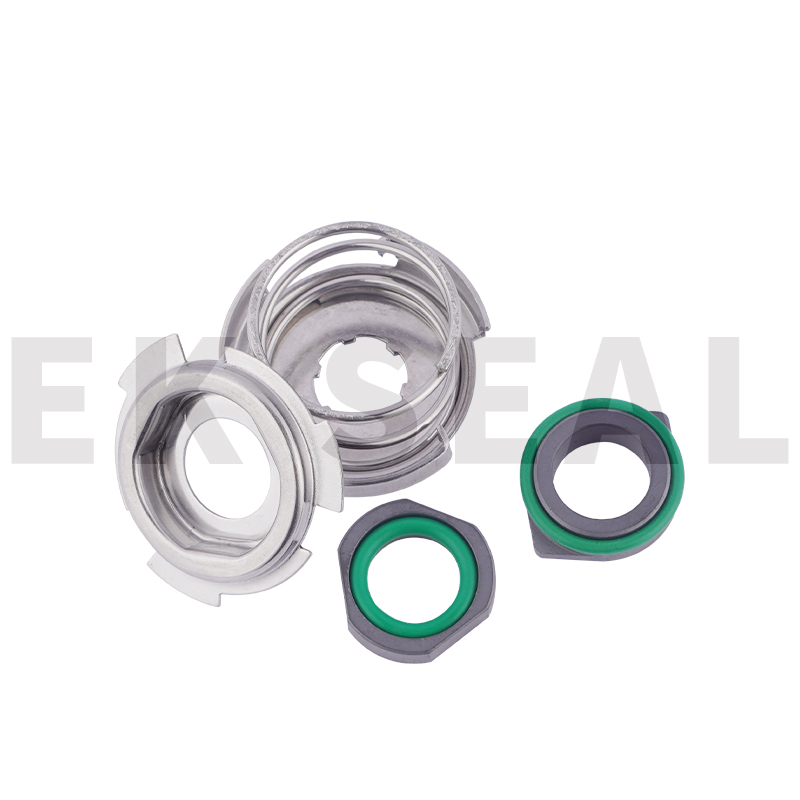

JY5 series mechanical seal,Suitable for Grundfos pumps ,12mm-24mm
| Model NO. | EK-JY5 |
| Balance | Unbalanced |
| Standard | ISO3069, GB6556, DIN24960 |

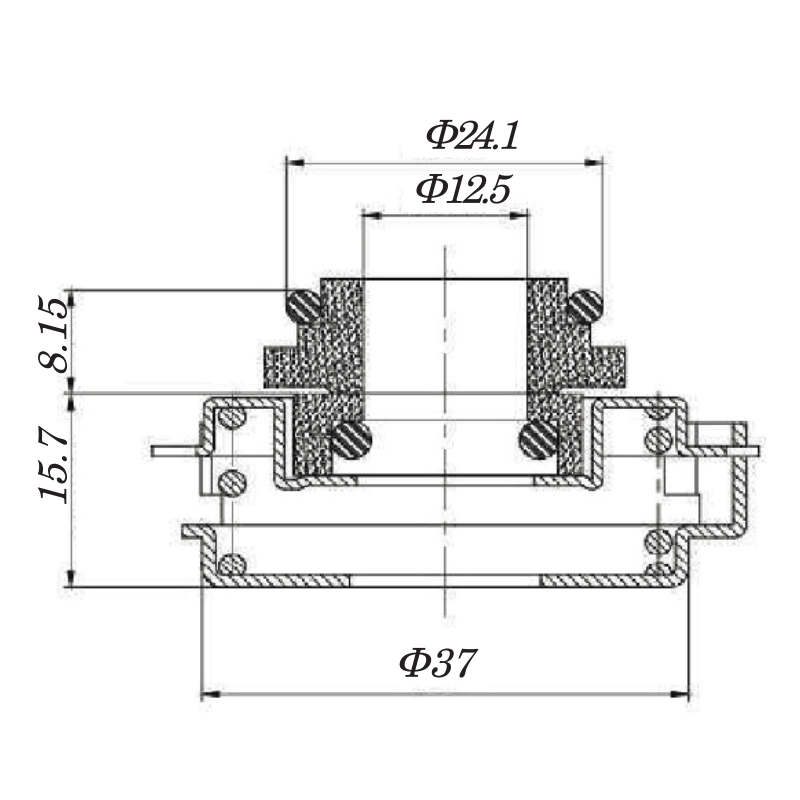

| Specification | Inner Diameter: 12 mm to 24 mm |
| Packaging Details | Carton |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time | 2/day |
Views:
We are here to solve your problems in a professional manner
Request ConsultationOur mechanical seal model JY5 mechanical seals is mainly applied in Grundfos pumps,the suitable types such as JP, Ch8,Ch12, CRK () 2,CRK ( ) 4 series. SPK1, SPK2,SPK4, SPK8 series. Cr2,Cr4 series.Part number of Grundfos: 96932392/96932350.CM 1/3/5-AQQE/-96932392.We also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.
Operating Limits
Pressure:≤1.5 MPa
Temperature:-20°C~+150ºC
Linear Speed: ≤15 m/s

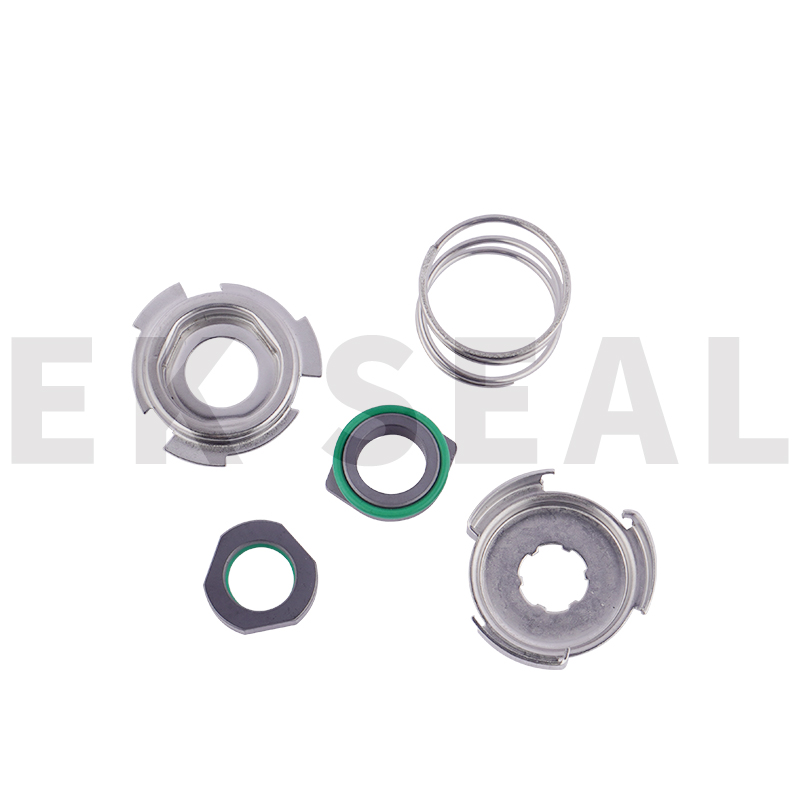

Materials
Rotary Ring:Ceramic/SIC/TC
Stationary Ring: Carbon/SIC/TC
Elastomers: NBR/EPDM/VITON
Spring: SSS304/SS316
Metal Parts: SS304/SS316
Mediums
weak acid, weak alkalis, water and solvents.
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
