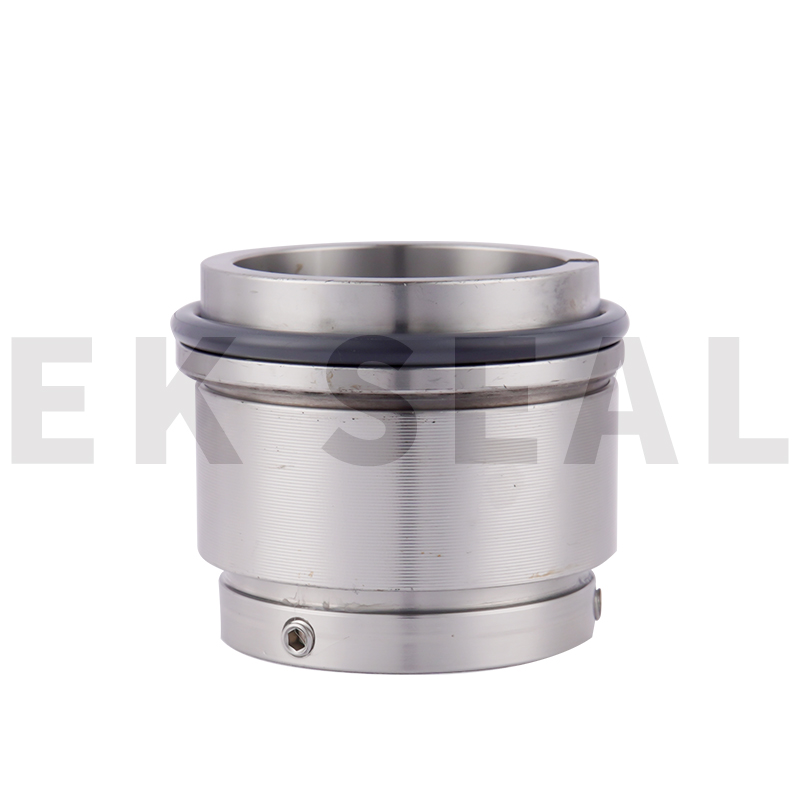

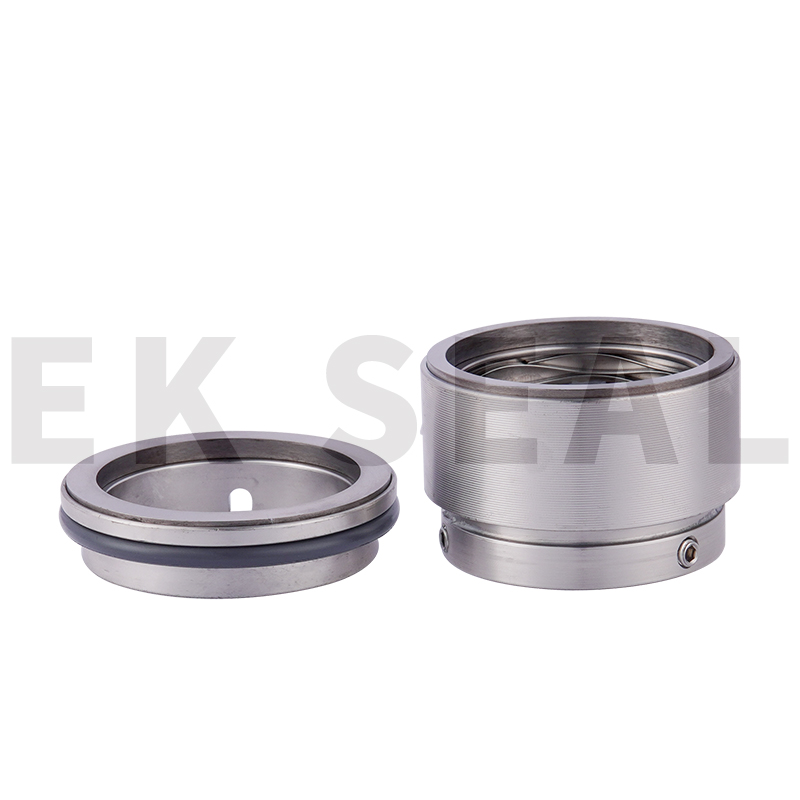

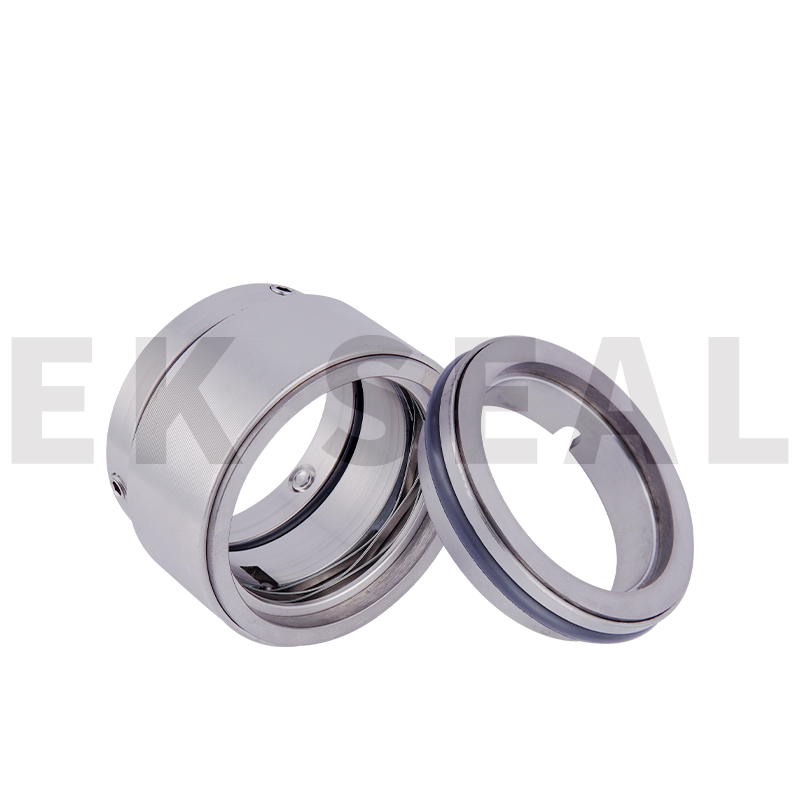

HJ92N series mechanical seal,Replacement for SHJ97 Burgmann HJ92N seal, RotensealEHS3,AESSEAL MO10 ,18mm-100mm
| Model NO. | EK-HJ92N |
| Balance | Unbalanced |
| Standard | ISO3069, GB6556, DIN24960 |
| Specification | Inner Diameter: 18 mm to 100 mm |
| Packaging Details | Carton |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time | 2/day |
Views:
We are here to solve your problems in a professional manner
Request ConsultationOur mechanical seal model HJ92N is mainly used in the pumps for Alfa Laval, Ebara (3M, DWO), Lowara,KSB (Etanorm,Etachrom), WILO (MVI, MH,IPL/DPL)Grundfos (CDM),Saer (iP), and(IP), Calpeda (GM,MXS),Hecker HN 410SU pumps.It can replace the seals for SHJ97 Burgmann HJ92N seal, RotensealEHS3,AESSEAL MO10.We also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.
Operating Limits
Pressure:≤2.5 MPa
Temperature:-20°C~+200°C
Linear Speed:≤25m/s
Materials
Rotary Ring:Carbon/SIC
Stationary Ring:SIC/TC
Elastomers: NBR/EPDM/VITON
Springs: SSS304/SS316
Metal Parts: SS304/SS316
Mediums
Liquid rich in solid impurity or high viscosity, such as refine sugar, sewage and paper industry.
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
